1545nm High Power PM Bandpass Filter/Tap Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Tap Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio and various Split Ratio. The Bandpass Filter/Tap Hybrid will pass the signal light while block the unwanted/ASE light, at the same time tap a certain ratio of signal light and output. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. X type is recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FPHB 1545nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 3nm 4nm 10nm 12nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FPHB 1545nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 3nm 4nm 10nm 12nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FPHB 1545nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 3nm 4nm 10nm 12nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave 30001F 30001X 3001F 3001X 3002F 3002X 3003F 3003X 3004F 3004X 30055 3005X 3010F 3010X 3015F 3015X 3020F 3020X 30255 3025X 3030F 3030X 3035F 3035X 3040F 3040X 30455 3045X 3050F 3050X 3055F 3055X 3060F 3060X 30655 3065X 3070F 3070X 3075F 3075X 3080F 3080X 30855 3085X 3090F 3090X 3095F 3095X 3096F 3096X 30975 3097X 3098F 3098X 3099F 3099X 40001F 40001X 4001F 4001X 4002F 4002X 4003F 4003X 4004F 4004X 40055 4005X 4010F 4010X 4015F 4015X 4020F 4020X 40255 4025X 4030F 4030X 4035F 4035X 4040F 4040X 40455 4045X 4050F 4050X 4055F 4055X 4060F 4060X 40655 4065X 4070F 4070X 4075F 4075X 4080F 4080X 40855 4085X 4090F 4090X 4095F 4095X 4096F 4096X 40975 4097X 4098F 4098X 4099F 4099X 100001F 100001X 10001F 10001X 10002F 10002X 10003F 10003X 10004F 10004X 100055 10005X 10010F 10010X 10015F 10015X 10020F 10020X 100255 10025X 10030F 10030X 10035F 10035X 10040F 10040X 100455 10045X 10050F 10050X 10055F 10055X 10060F 10060X 100655 10065X 10070F 10070X 10075F 10075X 10080F 10080X 100855 10085X 10090F 10090X 10095F 10095X 10096F 10096X 100975 10097X 10098F 10098X 10099F 10099X 120001F 120001X 12001F 12001X 12002F 12002X 12003F 12003X 12004F 12004X 120055 12005X 12010F 12010X 12015F 12015X 12020F 12020X 120255 12025X 12030F 12030X 12035F 12035X 12040F 12040X 120455 12045X 12050F 12050X 12055F 12055X 12060F 12060X 120655 12065X 12070F 12070X 12075F 12075X 12080F 12080X 120855 12085X 12090F 12090X 12095F 12095X 12096F 12096X 120975 12097X 12098F 12098X 12099F 12099X YY YS Y5 YA SY SS S5 SA 5Y 5S 55 5A AY AS A5 AA
TYPICAL SPECIFICATIONS
Center Wavelength 1545nm
Min. Bandwidth@0.5dB 3nm, 4nm, 10nm, 12nm
Tap Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Excess Loss <=1.8dB
Wavelength Suppression >=25dB
Return Loss >=50dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~50degreeC

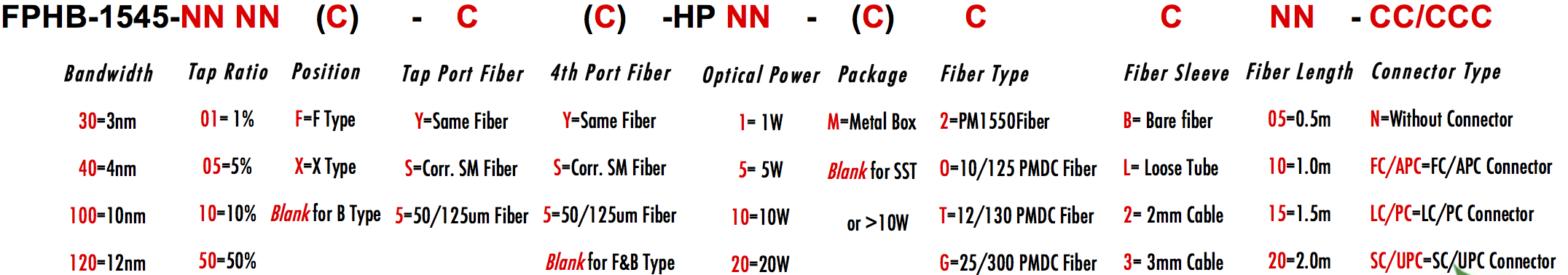

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
