1540nm BP/Partial Fiber Mirror (PFM) Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Partial Fiber Mirror (PFM) Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and various Reflective Ratio. The BP/PFM Hybrid will pass the signal light while block the unwanted/ASE light, at the same time reflect a certain ratio of signal light backward. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBR 1540nm Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 2nm 4nm 5nm 7nm 10nm 15nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type FHBR 1540nm Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 2nm 4nm 5nm 7nm 10nm 15nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type FHBR 1540nm Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 2nm 4nm 5nm 7nm 10nm 15nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type 20001Y 200015 20001A 2001Y 20015 2001A 2002Y 20025 2002A 2003Y 20035 2003A 2004Y 20045 2004A 2005Y 20055 2005A 2010Y 20105 2010A 2015Y 20155 2015A 2020Y 20205 2020A 2025Y 20255 2025A 2030Y 20305 2030A 2035Y 20355 2035A 2040Y 20405 2040A 2045Y 20455 2045A 2050Y 20505 2050A 2055Y 20555 2055A 2060Y 20605 2060A 2065Y 20655 2065A 2070Y 20705 2070A 2075Y 20755 2075A 2080Y 20805 2080A 2085Y 20855 2085A 2090Y 20905 2090A 2095Y 20955 2095A 2096Y 20965 2096A 2097Y 20975 2097A 2098Y 20985 2098A 2099Y 20995 2099A 40001Y 400015 40001A 4001Y 40015 4001A 4002Y 40025 4002A 4003Y 40035 4003A 4004Y 40045 4004A 4005Y 40055 4005A 4010Y 40105 4010A 4015Y 40155 4015A 4020Y 40205 4020A 4025Y 40255 4025A 4030Y 40305 4030A 4035Y 40355 4035A 4040Y 40405 4040A 4045Y 40455 4045A 4050Y 40505 4050A 4055Y 40555 4055A 4060Y 40605 4060A 4065Y 40655 4065A 4070Y 40705 4070A 4075Y 40755 4075A 4080Y 40805 4080A 4085Y 40855 4085A 4090Y 40905 4090A 4095Y 40955 4095A 4096Y 40965 4096A 4097Y 40975 4097A 4098Y 40985 4098A 4099Y 40995 4099A 50001Y 500015 50001A 5001Y 50015 5001A 5002Y 50025 5002A 5003Y 50035 5003A 5004Y 50045 5004A 5005Y 50055 5005A 5010Y 50105 5010A 5015Y 50155 5015A 5020Y 50205 5020A 5025Y 50255 5025A 5030Y 50305 5030A 5035Y 50355 5035A 5040Y 50405 5040A 5045Y 50455 5045A 5050Y 50505 5050A 5055Y 50555 5055A 5060Y 50605 5060A 5065Y 50655 5065A 5070Y 50705 5070A 5075Y 50755 5075A 5080Y 50805 5080A 5085Y 50855 5085A 5090Y 50905 5090A 5095Y 50955 5095A 5096Y 50965 5096A 5097Y 50975 5097A 5098Y 50985 5098A 5099Y 50995 5099A 70001Y 700015 70001A 7001Y 70015 7001A 7002Y 70025 7002A 7003Y 70035 7003A 7004Y 70045 7004A 7005Y 70055 7005A 7010Y 70105 7010A 7015Y 70155 7015A 7020Y 70205 7020A 7025Y 70255 7025A 7030Y 70305 7030A 7035Y 70355 7035A 7040Y 70405 7040A 7045Y 70455 7045A 7050Y 70505 7050A 7055Y 70555 7055A 7060Y 70605 7060A 7065Y 70655 7065A 7070Y 70705 7070A 7075Y 70755 7075A 7080Y 70805 7080A 7085Y 70855 7085A 7090Y 70905 7090A 7095Y 70955 7095A 7096Y 70965 7096A 7097Y 70975 7097A 7098Y 70985 7098A 7099Y 70995 7099A 100001Y 1000015 100001A 10001Y 100015 10001A 10002Y 100025 10002A 10003Y 100035 10003A 10004Y 100045 10004A 10005Y 100055 10005A 10010Y 100105 10010A 10015Y 100155 10015A 10020Y 100205 10020A 10025Y 100255 10025A 10030Y 100305 10030A 10035Y 100355 10035A 10040Y 100405 10040A 10045Y 100455 10045A 10050Y 100505 10050A 10055Y 100555 10055A 10060Y 100605 10060A 10065Y 100655 10065A 10070Y 100705 10070A 10075Y 100755 10075A 10080Y 100805 10080A 10085Y 100855 10085A 10090Y 100905 10090A 10095Y 100955 10095A 10096Y 100965 10096A 10097Y 100975 10097A 10098Y 100985 10098A 10099Y 100995 10099A 150001Y 1500015 150001A 15001Y 150015 15001A 15002Y 150025 15002A 15003Y 150035 15003A 15004Y 150045 15004A 15005Y 150055 15005A 15010Y 150105 15010A 15015Y 150155 15015A 15020Y 150205 15020A 15025Y 150255 15025A 15030Y 150305 15030A 15035Y 150355 15035A 15040Y 150405 15040A 15045Y 150455 15045A 15050Y 150505 15050A 15055Y 150555 15055A 15060Y 150605 15060A 15065Y 150655 15065A 15070Y 150705 15070A 15075Y 150755 15075A 15080Y 150805 15080A 15085Y 150855 15085A 15090Y 150905 15090A 15095Y 150955 15095A 15096Y 150965 15096A 15097Y 150975 15097A 15098Y 150985 15098A 15099Y 150995 15099A
TYPICAL SPECIFICATIONS
Center Wavelength 1540nm
Min. Bandwidth@0.5dB 2nm, 4nm, 5nm, 7nm, 10nm, 15nm
Configuration D Type (2-port), Y Type (3-port)
Excess Loss <=1.3dB
Wavelength Suppression >=25dB
Reflective Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%, 80%, 90%
Return Loss >=45dB
PDL <=0.1dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~70degreeC

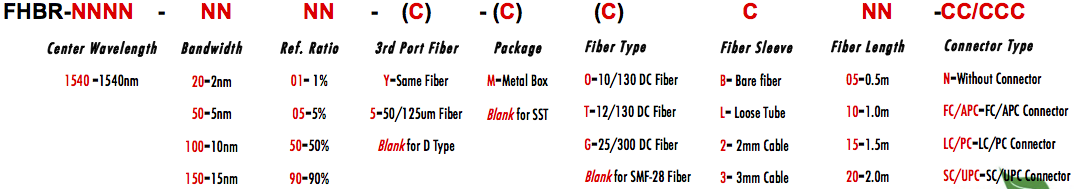

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
