1550nm BP/Partial Fiber Mirror (PFM) Hybrid for Pulse Power (<10nm BW)

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Partial Fiber Mirror (PFM) Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and various Reflective Ratio. The BP/PFM Hybrid will pass the signal light while block the unwanted/ASE light, at the same time reflect a certain ratio of signal light backward. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Y Type is strongly recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBR 1550nm Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 0.3nm 0.7nm 2nm 3nm 4nm 5nm 7nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBR 1550nm Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 0.3nm 0.7nm 2nm 3nm 4nm 5nm 7nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBR 1550nm Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 0.3nm 0.7nm 2nm 3nm 4nm 5nm 7nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 03001Y 030015 03001A 0301Y 03015 0301A 0302Y 03025 0302A 0303Y 03035 0303A 0304Y 03045 0304A 0305Y 03055 0305A 0310Y 03105 0310A 0315Y 03155 0315A 0320Y 03205 0320A 0325Y 03255 0325A 0330Y 03305 0330A 0335Y 03355 0335A 0340Y 03405 0340A 0345Y 03455 0345A 0350Y 03505 0350A 0355Y 03555 0355A 0360Y 03605 0360A 0365Y 03655 0365A 0370Y 03705 0370A 0375Y 03755 0375A 0380Y 03805 0380A 0385Y 03855 0385A 0390Y 03905 0390A 0395Y 03955 0395A 0396Y 03965 0396A 0397Y 03975 0397A 0398Y 03985 0398A 0399Y 03995 0399A 07001Y 070015 07001A 0701Y 07015 0701A 0702Y 07025 0702A 0703Y 07035 0703A 0704Y 07045 0704A 0705Y 07055 0705A 0710Y 07105 0710A 0715Y 07155 0715A 0720Y 07205 0720A 0725Y 07255 0725A 0730Y 07305 0730A 0735Y 07355 0735A 0740Y 07405 0740A 0745Y 07455 0745A 0750Y 07505 0750A 0755Y 07555 0755A 0760Y 07605 0760A 0765Y 07655 0765A 0770Y 07705 0770A 0775Y 07755 0775A 0780Y 07805 0780A 0785Y 07855 0785A 0790Y 07905 0790A 0795Y 07955 0795A 0796Y 07965 0796A 0797Y 07975 0797A 0798Y 07985 0798A 0799Y 07995 0799A 20001Y 200015 20001A 2001Y 20015 2001A 2002Y 20025 2002A 2003Y 20035 2003A 2004Y 20045 2004A 2005Y 20055 2005A 2010Y 20105 2010A 2015Y 20155 2015A 2020Y 20205 2020A 2025Y 20255 2025A 2030Y 20305 2030A 2035Y 20355 2035A 2040Y 20405 2040A 2045Y 20455 2045A 2050Y 20505 2050A 2055Y 20555 2055A 2060Y 20605 2060A 2065Y 20655 2065A 2070Y 20705 2070A 2075Y 20755 2075A 2080Y 20805 2080A 2085Y 20855 2085A 2090Y 20905 2090A 2095Y 20955 2095A 2096Y 20965 2096A 2097Y 20975 2097A 2098Y 20985 2098A 2099Y 20995 2099A 30001Y 300015 30001A 3001Y 30015 3001A 3002Y 30025 3002A 3003Y 30035 3003A 3004Y 30045 3004A 3005Y 30055 3005A 3010Y 30105 3010A 3015Y 30155 3015A 3020Y 30205 3020A 3025Y 30255 3025A 3030Y 30305 3030A 3035Y 30355 3035A 3040Y 30405 3040A 3045Y 30455 3045A 3050Y 30505 3050A 3055Y 30555 3055A 3060Y 30605 3060A 3065Y 30655 3065A 3070Y 30705 3070A 3075Y 30755 3075A 3080Y 30805 3080A 3085Y 30855 3085A 3090Y 30905 3090A 3095Y 30955 3095A 3096Y 30965 3096A 3097Y 30975 3097A 3098Y 30985 3098A 3099Y 30995 3099A 40001Y 400015 40001A 4001Y 40015 4001A 4002Y 40025 4002A 4003Y 40035 4003A 4004Y 40045 4004A 4005Y 40055 4005A 4010Y 40105 4010A 4015Y 40155 4015A 4020Y 40205 4020A 4025Y 40255 4025A 4030Y 40305 4030A 4035Y 40355 4035A 4040Y 40405 4040A 4045Y 40455 4045A 4050Y 40505 4050A 4055Y 40555 4055A 4060Y 40605 4060A 4065Y 40655 4065A 4070Y 40705 4070A 4075Y 40755 4075A 4080Y 40805 4080A 4085Y 40855 4085A 4090Y 40905 4090A 4095Y 40955 4095A 4096Y 40965 4096A 4097Y 40975 4097A 4098Y 40985 4098A 4099Y 40995 4099A 50001Y 500015 50001A 5001Y 50015 5001A 5002Y 50025 5002A 5003Y 50035 5003A 5004Y 50045 5004A 5005Y 50055 5005A 5010Y 50105 5010A 5015Y 50155 5015A 5020Y 50205 5020A 5025Y 50255 5025A 5030Y 50305 5030A 5035Y 50355 5035A 5040Y 50405 5040A 5045Y 50455 5045A 5050Y 50505 5050A 5055Y 50555 5055A 5060Y 50605 5060A 5065Y 50655 5065A 5070Y 50705 5070A 5075Y 50755 5075A 5080Y 50805 5080A 5085Y 50855 5085A 5090Y 50905 5090A 5095Y 50955 5095A 5096Y 50965 5096A 5097Y 50975 5097A 5098Y 50985 5098A 5099Y 50995 5099A 70001Y 700015 70001A 7001Y 70015 7001A 7002Y 70025 7002A 7003Y 70035 7003A 7004Y 70045 7004A 7005Y 70055 7005A 7010Y 70105 7010A 7015Y 70155 7015A 7020Y 70205 7020A 7025Y 70255 7025A 7030Y 70305 7030A 7035Y 70355 7035A 7040Y 70405 7040A 7045Y 70455 7045A 7050Y 70505 7050A 7055Y 70555 7055A 7060Y 70605 7060A 7065Y 70655 7065A 7070Y 70705 7070A 7075Y 70755 7075A 7080Y 70805 7080A 7085Y 70855 7085A 7090Y 70905 7090A 7095Y 70955 7095A 7096Y 70965 7096A 7097Y 70975 7097A 7098Y 70985 7098A 7099Y 70995 7099A
TYPICAL SPECIFICATIONS
Center Wavelength 1550nm
Min. Bandwidth@0.5dB 0.3nm, 0.7nm, 2nm, 3nm, 4nm, 5nm, 7nm
Configuration D Type (2-port), Y Type (3-port)
Excess Loss <=1.3dB
Wavelength Suppression >=25dB
Reflective Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%, 80%, 90%
Return Loss >=45dB
PDL <=0.1dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

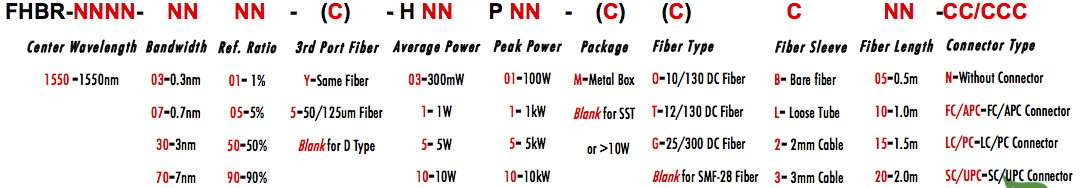

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
