1550nm High Power Optical Isolator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 1550nm 1530nm 1540nm 1560nm 1570nm 1545nm 1555nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W Watt Watts HP CW Continuous Wave FISO 1550nm 1530nm 1540nm 1560nm 1570nm 1545nm 1555nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W Watt Watts HP CW Continuous Wave FISO 1550nm 1530nm 1540nm 1560nm 1570nm 1545nm 1555nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W Watt Watts HP CW Continuous Wave S D H
TYPICAL SPECIFICATIONS
Center Wavelength 1550nm
Peak Isolation 42 (Single Stage), 58 (Dual Stage), 35 (H Stage)
Isolation >=32 (Single Stage), >=45 (Dual Stage), >=25dB (H Stage)
Insertion Loss (23degree) <=0.35dB (Single Stage), <=0.4dB (Dual Stage), <=0.5dB (H Stage)
Insertion Loss <=0.5dB (Single Stage), <=0.6dB (Dual Stage), <=0.8dB (H Stage)
Return Loss >=60/55dB (Single&Dual Stage), >=55/50dB (H Stage)
PDL <=0.05dB (Single Stage), <=0.1dB (Dual Stage), <=0.2dB (H Stage)
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Operating Temperature 0~50degreeC

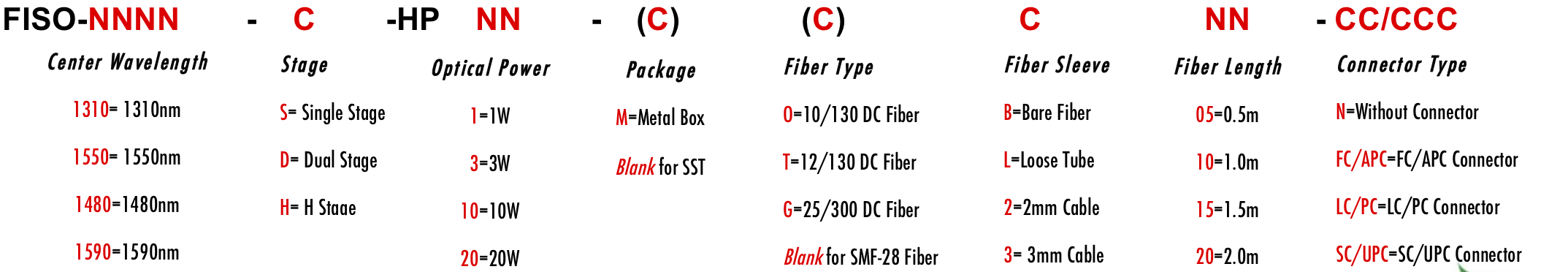

ORDERING INFORMATION/PART NUMBER(PN)
