980nm High Power MM Optical Isolator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMIS 980nm 970nm 990nm 985nm 975nm 976nm MM Multimode Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? Graded Index Step GIMM SIMM 50/125um 62.5/125um 2-port D Type 3-port Y Type High Power 1W 2W 3W 5W 10W  Watt Watts HP CW Continuous Wave FMIS 980nm 970nm 990nm 985nm 975nm 976nm MM Multimode Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? Graded Index Step GIMM SIMM 50/125um 62.5/125um 2-port D Type 3-port Y Type High Power 1W 2W 3W 5W 10W  Watt Watts HP CW Continuous Wave FMIS 980nm 970nm 990nm 985nm 975nm 976nm MM Multimode Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? Graded Index Step GIMM SIMM 50/125um 62.5/125um 2-port D Type 3-port Y Type High Power 1W 2W 3W 5W 10W 15W 20W 25W 30W Watt Watts HP CW Continuous Wave
TYPICAL SPECIFICATIONS
Center Wavelength 980nm
Peak Isolation 25dB
Isolation(23degree) >=20
Insertion Loss (Typ. 23degree) 1.2dB
Insertion Loss (23degree) <=1.8dB
Return Loss >=30dB
Fiber Type 50/125um or 62.5/125um MM Fiber
50/125um OM3 MM Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Operating Temperature 0~50degreeC

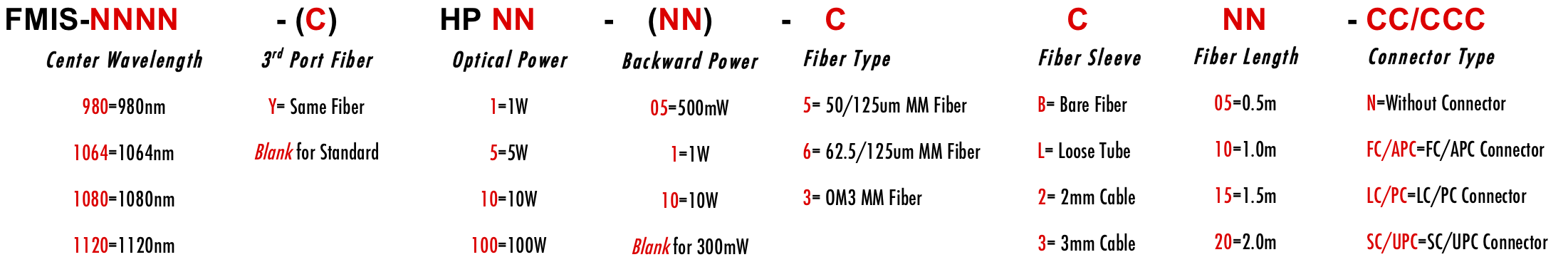

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
