750nm High Power Optical Isolator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 750nm 740nm 760nm 745nm 755nm 756nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um 3-port Y Type High Power 300mW 500mW 1W 2W 3W 4W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FISO 750nm 740nm 760nm 745nm 755nm 756nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um 3-port Y Type High Power 300mW 500mW 1W 2W 3W 4W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FISO 750nm 740nm 760nm 745nm 755nm 756nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um 3-port Y Type High Power 300mW 500mW 1W 2W 3W 4W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave
TYPICAL SPECIFICATIONS
Center Wavelength 750nm
Peak Isolation 25
Isolation (23degree) >=20
Insertion Loss (Typical, 23degree) 1.5dB
Insertion Loss (23degree) <=2.0dB
Return Loss >=45dB
PDL <=0.25dB
Fiber Type HI780 Fiber or 780-HP Fiber
Max. Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W 20W
Operating Temperature 0~50degreeC

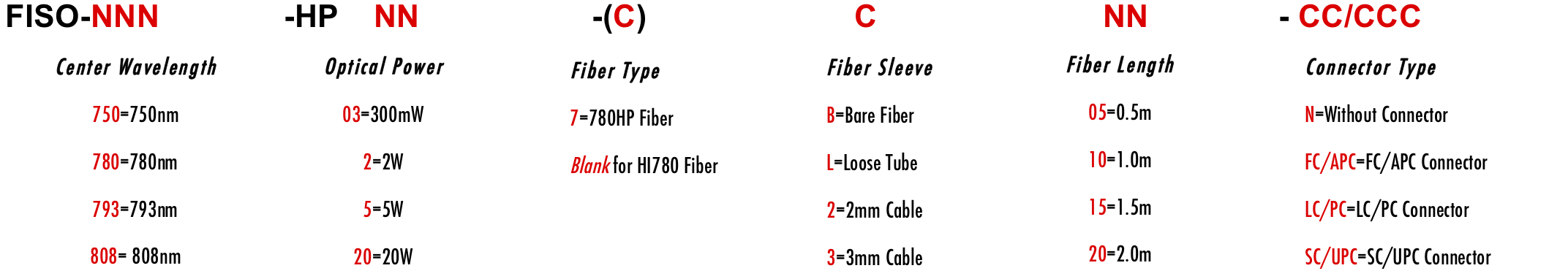

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
