780nm High Power Optical Isolator for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 780nm 760nm 770nm 790nm 775nm 765nm 785nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W  15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FISO 780nm 760nm 770nm 790nm 775nm 765nm 785nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W  15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FISO 780nm 760nm 770nm 790nm 775nm 765nm 785nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W  15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP
TYPICAL SPECIFICATIONS
Center Wavelength 780nm
Peak Isolation 25
Isolation (23degree) >=20
Insertion Loss (Typical, 23degree) 1.5dB
Insertion Loss (23degree) <=2.0dB
Return Loss >=45dB
PDL <=0.25dB
Fiber Type HI780 Fiber or 780-HP Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

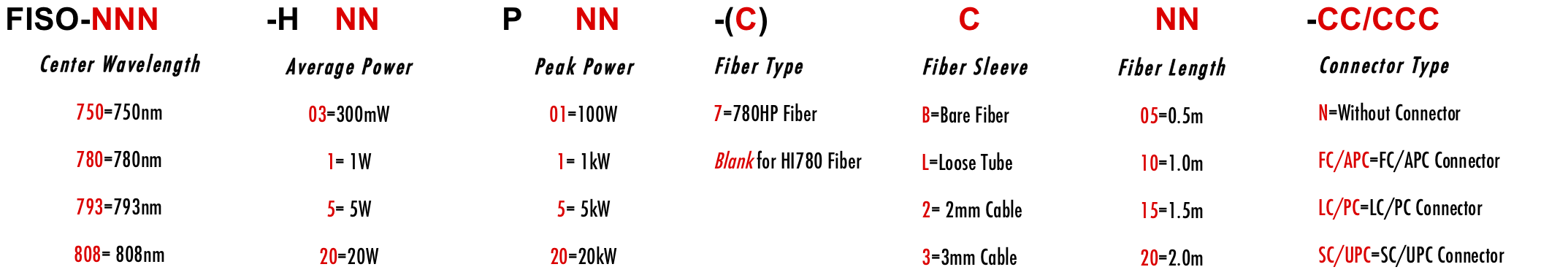

ORDERING INFORMATION/PART NUMBER(PN)
