793nm High Power PM Optical Isolator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 793nm 790nm 780nm 783nm 803nm 800nm795nm 785nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM850 PM780HP 4/125um 5/125um 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPIS 793nm 790nm 780nm 783nm 803nm 800nm795nm 785nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM850 PM780HP 4/125um 5/125um 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPIS 793nm 790nm 780nm 783nm 803nm 800nm795nm 785nm PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM850 PM780HP 4/125um 5/125um 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave S F
TYPICAL SPECIFICATIONS
Center Wavelength 793nm
Peak Isolation 25
Isolation (23degree) >=20
Insertion Loss (Typical, 23degree) 1.5dB
Insertion Loss (23degree) <=2.0dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type PM850 Fiber or PM780-HP Fiber
Max. Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W 20W
Operating Temperature 0~50degreeC

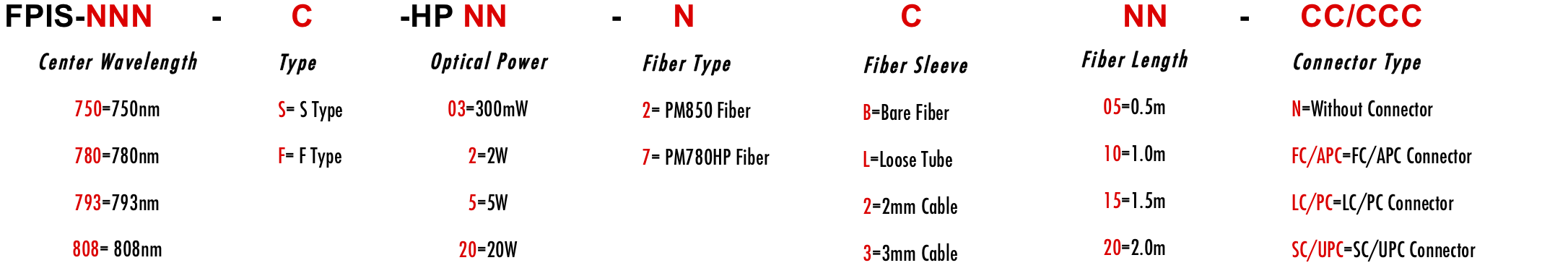

ORDERING INFORMATION/PART NUMBER(PN)
