1064nm Minisize High Power PM Tap/Isolator Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The Tap/Isolator Hybrid is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Isolation, various Tap Ratio and high Extinction Ratio. The Tap/Isolator Hybrid will transmit the signal at single direction while at the same time tap a certain ratio portion of signal light for monitoring purpose. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPTI 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm PM Tap/Isolator Hybrid Isolate abschaltung Aislador isolateur Isolador odizolowa? Iso HYB HYBR HY HB Splitter Tap Coupler coupleur dieses Acoplador PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 500mW 1W 2W 3W 5W Watt Watts HP CW Continuous Wave FPTI 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm PM Tap/Isolator Hybrid Isolate abschaltung Aislador isolateur Isolador odizolowa? Iso HYB HYBR HY HB Splitter Tap Coupler coupleur dieses Acoplador PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 500mW 1W 2W 3W 5W Watt Watts HP CW Continuous Wave FPTI 1064nm 1060nm 1050nm 1070nm 1055nm 1065nm 1063nm 1062nm PM Tap/Isolator Hybrid Isolate abschaltung Aislador isolateur Isolador odizolowa? Iso HYB HYBR HY HB Splitter Tap Coupler coupleur dieses Acoplador PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 500mW 1W 2W 3W 5W Watt Watts HP CW Continuous Wave MS001A MS01A MS02A MS03A MS04A MS05A MS06A MS07A MS08A MS09A MS10A MS11A MS12A MS13A MS14A MS15A MS16A MS17A MS18A MS19A MS20A MS21A MS22A MS23A MS24A MS25A MS26A MS27A MS28A MS29A MS30A MS31A MS32A MS33A MS34A MS35A MS36A MS37A MS38A MS39A MS40A MS41A MS42A MS43A MS44A MS45A MS46A MS47A MS48A MS49A MS50A MS51A MS52A MS53A MS54A MS55A MS56A MS57A MS58A MS59A MS60A MS61A MS62A MS63A MS64A MS65A MS66A MS67A MS68A MS69A MS70A MS71A MS72A MS73A MS74A MS75A MS76A MS77A MS78A MS79A MS80A MS81A MS82A MS83A MS84A MS85A MS86A MS87A MS88A MS89A MS90A MS91A MS92A MS93A MS94A MS95A MS96A MS97A MS98A MS99A MS0015 MS015 MS025 MS035 MS045 MS055 MS065 MS075 MS085 MS095 MS105 MS115 MS125 MS135 MS145 MS155 MS165 MS175 MS185 MS195 MS205 MS215 MS225 MS235 MS245 MS255 MS265 MS275 MS285 MS295 MS305 MS315 MS325 MS335 MS345 MS355 MS365 MS375 MS385 MS395 MS405 MS415 MS425 MS435 MS445 MS455 MS465 MS475 MS485 MS495 MS505 MS515 MS525 MS535 MS545 MS555 MS565 MS575 MS585 MS595 MS605 MS615 MS625 MS635 MS645 MS655 MS665 MS675 MS685 MS695 MS705 MS715 MS725 MS735 MS745 MS755 MS765 MS775 MS785 MS795 MS805 MS815 MS825 MS835 MS845 MS855 MS865 MS875 MS885 MS895 MS905 MS915 MS925 MS935 MS945 MS955 MS965 MS975 MS985 MS995 MS0016 MS016 MS026 MS036 MS046 MS056 MS066 MS076 MS086 MS096 MS106 MS116 MS126 MS136 MS146 MS156 MS166 MS176 MS186 MS196 MS206 MS216 MS226 MS236 MS246 MS256 MS266 MS276 MS286 MS296 MS306 MS316 MS326 MS336 MS346 MS356 MS366 MS376 MS386 MS396 MS406 MS416 MS426 MS436 MS446 MS456 MS466 MS476 MS486 MS496 MS506 MS516 MS526 MS536 MS546 MS556 MS566 MS576 MS586 MS596 MS606 MS616 MS626 MS636 MS646 MS656 MS666 MS676 MS686 MS696 MS706 MS716 MS726 MS736 MS746 MS756 MS766 MS776 MS786 MS796 MS806 MS816 MS826 MS836 MS846 MS856 MS866 MS876 MS886 MS896 MS906 MS916 MS926 MS936 MS946 MS956 MS966 MS976 MS986 MS996 MS001B MS01B MS02B MS03B MS04B MS05B MS06B MS07B MS08B MS09B MS10B MS11B MS12B MS13B MS14B MS15B MS16B MS17B MS18B MS19B MS20B MS21B MS22B MS23B MS24B MS25B MS26B MS27B MS28B MS29B MS30B MS31B MS32B MS33B MS34B MS35B MS36B MS37B MS38B MS39B MS40B MS41B MS42B MS43B MS44B MS45B MS46B MS47B MS48B MS49B MS50B MS51B MS52B MS53B MS54B MS55B MS56B MS57B MS58B MS59B MS60B MS61B MS62B MS63B MS64B MS65B MS66B MS67B MS68B MS69B MS70B MS71B MS72B MS73B MS74B MS75B MS76B MS77B MS78B MS79B MS80B MS81B MS82B MS83B MS84B MS85B MS86B MS87B MS88B MS89B MS90B MS91B MS92B MS93B MS94B MS95B MS96B MS97B MS98B MS99B MS001S MS01S MS02S MS03S MS04S MS05S MS06S MS07S MS08S MS09S MS10S MS11S MS12S MS13S MS14S MS15S MS16S MS17S MS18S MS19S MS20S MS21S MS22S MS23S MS24S MS25S MS26S MS27S MS28S MS29S MS30S MS31S MS32S MS33S MS34S MS35S MS36S MS37S MS38S MS39S MS40S MS41S MS42S MS43S MS44S MS45S MS46S MS47S MS48S MS49S MS50S MS51S MS52S MS53S MS54S MS55S MS56S MS57S MS58S MS59S MS60S MS61S MS62S MS63S MS64S MS65S MS66S MS67S MS68S MS69S MS70S MS71S MS72S MS73S MS74S MS75S MS76S MS77S MS78S MS79S MS80S MS81S MS82S MS83S MS84S MS85S MS86S MS87S MS88S MS89S MS90S MS91S MS92S MS93S MS94S MS95S MS96S MS97S MS98S MS99S MF001A MF01A MF02A MF03A MF04A MF05A MF06A MF07A MF08A MF09A MF10A MF11A MF12A MF13A MF14A MF15A MF16A MF17A MF18A MF19A MF20A MF21A MF22A MF23A MF24A MF25A MF26A MF27A MF28A MF29A MF30A MF31A MF32A MF33A MF34A MF35A MF36A MF37A MF38A MF39A MF40A MF41A MF42A MF43A MF44A MF45A MF46A MF47A MF48A MF49A MF50A MF51A MF52A MF53A MF54A MF55A MF56A MF57A MF58A MF59A MF60A MF61A MF62A MF63A MF64A MF65A MF66A MF67A MF68A MF69A MF70A MF71A MF72A MF73A MF74A MF75A MF76A MF77A MF78A MF79A MF80A MF81A MF82A MF83A MF84A MF85A MF86A MF87A MF88A MF89A MF90A MF91A MF92A MF93A MF94A MF95A MF96A MF97A MF98A MF99A MF0015 MF015 MF025 MF035 MF045 MF055 MF065 MF075 MF085 MF095 MF105 MF115 MF125 MF135 MF145 MF155 MF165 MF175 MF185 MF195 MF205 MF215 MF225 MF235 MF245 MF255 MF265 MF275 MF285 MF295 MF305 MF315 MF325 MF335 MF345 MF355 MF365 MF375 MF385 MF395 MF405 MF415 MF425 MF435 MF445 MF455 MF465 MF475 MF485 MF495 MF505 MF515 MF525 MF535 MF545 MF555 MF565 MF575 MF585 MF595 MF605 MF615 MF625 MF635 MF645 MF655 MF665 MF675 MF685 MF695 MF705 MF715 MF725 MF735 MF745 MF755 MF765 MF775 MF785 MF795 MF805 MF815 MF825 MF835 MF845 MF855 MF865 MF875 MF885 MF895 MF905 MF915 MF925 MF935 MF945 MF955 MF965 MF975 MF985 MF995 MF0016 MF016 MF026 MF036 MF046 MF056 MF066 MF076 MF086 MF096 MF106 MF116 MF126 MF136 MF146 MF156 MF166 MF176 MF186 MF196 MF206 MF216 MF226 MF236 MF246 MF256 MF266 MF276 MF286 MF296 MF306 MF316 MF326 MF336 MF346 MF356 MF366 MF376 MF386 MF396 MF406 MF416 MF426 MF436 MF446 MF456 MF466 MF476 MF486 MF496 MF506 MF516 MF526 MF536 MF546 MF556 MF566 MF576 MF586 MF596 MF606 MF616 MF626 MF636 MF646 MF656 MF666 MF676 MF686 MF696 MF706 MF716 MF726 MF736 MF746 MF756 MF766 MF776 MF786 MF796 MF806 MF816 MF826 MF836 MF846 MF856 MF866 MF876 MF886 MF896 MF906 MF916 MF926 MF936 MF946 MF956 MF966 MF976 MF986 MF996 MF001B MF01B MF02B MF03B MF04B MF05B MF06B MF07B MF08B MF09B MF10B MF11B MF12B MF13B MF14B MF15B MF16B MF17B MF18B MF19B MF20B MF21B MF22B MF23B MF24B MF25B MF26B MF27B MF28B MF29B MF30B MF31B MF32B MF33B MF34B MF35B MF36B MF37B MF38B MF39B MF40B MF41B MF42B MF43B MF44B MF45B MF46B MF47B MF48B MF49B MF50B MF51B MF52B MF53B MF54B MF55B MF56B MF57B MF58B MF59B MF60B MF61B MF62B MF63B MF64B MF65B MF66B MF67B MF68B MF69B MF70B MF71B MF72B MF73B MF74B MF75B MF76B MF77B MF78B MF79B MF80B MF81B MF82B MF83B MF84B MF85B MF86B MF87B MF88B MF89B MF90B MF91B MF92B MF93B MF94B MF95B MF96B MF97B MF98B MF99B MF001S MF01S MF02S MF03S MF04S MF05S MF06S MF07S MF08S MF09S MF10S MF11S MF12S MF13S MF14S MF15S MF16S MF17S MF18S MF19S MF20S MF21S MF22S MF23S MF24S MF25S MF26S MF27S MF28S MF29S MF30S MF31S MF32S MF33S MF34S MF35S MF36S MF37S MF38S MF39S MF40S MF41S MF42S MF43S MF44S MF45S MF46S MF47S MF48S MF49S MF50S MF51S MF52S MF53S MF54S MF55S MF56S MF57S MF58S MF59S MF60S MF61S MF62S MF63S MF64S MF65S MF66S MF67S MF68S MF69S MF70S MF71S MF72S MF73S MF74S MF75S MF76S MF77S MF78S MF79S MF80S MF81S MF82S MF83S MF84S MF85S MF86S MF87S MF88S MF89S MF90S MF91S MF92S MF93S MF94S MF95S MF96S MF97S MF98S MF99S MB001A MB01A MB02A MB03A MB04A MB05A MB06A MB07A MB08A MB09A MB10A MB11A MB12A MB13A MB14A MB15A MB16A MB17A MB18A MB19A MB20A MB21A MB22A MB23A MB24A MB25A MB26A MB27A MB28A MB29A MB30A MB31A MB32A MB33A MB34A MB35A MB36A MB37A MB38A MB39A MB40A MB41A MB42A MB43A MB44A MB45A MB46A MB47A MB48A MB49A MB50A MB51A MB52A MB53A MB54A MB55A MB56A MB57A MB58A MB59A MB60A MB61A MB62A MB63A MB64A MB65A MB66A MB67A MB68A MB69A MB70A MB71A MB72A MB73A MB74A MB75A MB76A MB77A MB78A MB79A MB80A MB81A MB82A MB83A MB84A MB85A MB86A MB87A MB88A MB89A MB90A MB91A MB92A MB93A MB94A MB95A MB96A MB97A MB98A MB99A MB0015 MB015 MB025 MB035 MB045 MB055 MB065 MB075 MB085 MB095 MB105 MB115 MB125 MB135 MB145 MB155 MB165 MB175 MB185 MB195 MB205 MB215 MB225 MB235 MB245 MB255 MB265 MB275 MB285 MB295 MB305 MB315 MB325 MB335 MB345 MB355 MB365 MB375 MB385 MB395 MB405 MB415 MB425 MB435 MB445 MB455 MB465 MB475 MB485 MB495 MB505 MB515 MB525 MB535 MB545 MB555 MB565 MB575 MB585 MB595 MB605 MB615 MB625 MB635 MB645 MB655 MB665 MB675 MB685 MB695 MB705 MB715 MB725 MB735 MB745 MB755 MB765 MB775 MB785 MB795 MB805 MB815 MB825 MB835 MB845 MB855 MB865 MB875 MB885 MB895 MB905 MB915 MB925 MB935 MB945 MB955 MB965 MB975 MB985 MB995 MB0016 MB016 MB026 MB036 MB046 MB056 MB066 MB076 MB086 MB096 MB106 MB116 MB126 MB136 MB146 MB156 MB166 MB176 MB186 MB196 MB206 MB216 MB226 MB236 MB246 MB256 MB266 MB276 MB286 MB296 MB306 MB316 MB326 MB336 MB346 MB356 MB366 MB376 MB386 MB396 MB406 MB416 MB426 MB436 MB446 MB456 MB466 MB476 MB486 MB496 MB506 MB516 MB526 MB536 MB546 MB556 MB566 MB576 MB586 MB596 MB606 MB616 MB626 MB636 MB646 MB656 MB666 MB676 MB686 MB696 MB706 MB716 MB726 MB736 MB746 MB756 MB766 MB776 MB786 MB796 MB806 MB816 MB826 MB836 MB846 MB856 MB866 MB876 MB886 MB896 MB906 MB916 MB926 MB936 MB946 MB956 MB966 MB976 MB986 MB996 MB001B MB01B MB02B MB03B MB04B MB05B MB06B MB07B MB08B MB09B MB10B MB11B MB12B MB13B MB14B MB15B MB16B MB17B MB18B MB19B MB20B MB21B MB22B MB23B MB24B MB25B MB26B MB27B MB28B MB29B MB30B MB31B MB32B MB33B MB34B MB35B MB36B MB37B MB38B MB39B MB40B MB41B MB42B MB43B MB44B MB45B MB46B MB47B MB48B MB49B MB50B MB51B MB52B MB53B MB54B MB55B MB56B MB57B MB58B MB59B MB60B MB61B MB62B MB63B MB64B MB65B MB66B MB67B MB68B MB69B MB70B MB71B MB72B MB73B MB74B MB75B MB76B MB77B MB78B MB79B MB80B MB81B MB82B MB83B MB84B MB85B MB86B MB87B MB88B MB89B MB90B MB91B MB92B MB93B MB94B MB95B MB96B MB97B MB98B MB99B MB001S MB01S MB02S MB03S MB04S MB05S MB06S MB07S MB08S MB09S MB10S MB11S MB12S MB13S MB14S MB15S MB16S MB17S MB18S MB19S MB20S MB21S MB22S MB23S MB24S MB25S MB26S MB27S MB28S MB29S MB30S MB31S MB32S MB33S MB34S MB35S MB36S MB37S MB38S MB39S MB40S MB41S MB42S MB43S MB44S MB45S MB46S MB47S MB48S MB49S MB50S MB51S MB52S MB53S MB54S MB55S MB56S MB57S MB58S MB59S MB60S MB61S MB62S MB63S MB64S MB65S MB66S MB67S MB68S MB69S MB70S MB71S MB72S MB73S MB74S MB75S MB76S MB77S MB78S MB79S MB80S MB81S MB82S MB83S MB84S MB85S MB86S MB87S MB88S MB89S MB90S MB91S MB92S MB93S MB94S MB95S MB96S MB97S MB98S MB99S
TYPICAL SPECIFICATIONS
Center Wavelength 1064nm
Isolation (23degree) >=22
Excess Loss <=3.3dB (0.5~1W Power) <=3.8 (2~5W Power)
Tap Ratio 0.1%, 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Work Mode S Type: Tap Input Light before Isolator, Can only work in Slow Axis
F Type: Tap Input Light before Isolator, work in Slow & Fast Axis
B Type: Tap Input Light after Isolator, Can only work in slow axis
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 500mW, 1W, 2W, 3W, 4W, 5W
Operating Temperature 0~50degreeC

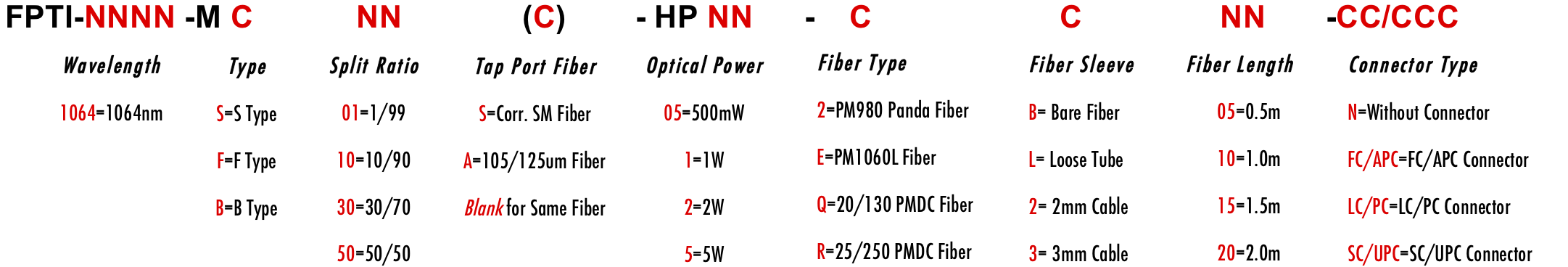

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
