1550nm High Power 3-port Optical Circulator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Circulator will transmit the signal in a circular route. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCIR 1550nm 1530nm 1540nm 1560nm 1570nm 1545nm 1555nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W  Watt Watts HP CW Continuous Wave FCIR 1550nm 1530nm 1540nm 1560nm 1570nm 1545nm 1555nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W  Watt Watts HP CW Continuous Wave FCIR 1550nm 1530nm 1540nm 1560nm 1570nm 1545nm 1555nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W  Watt Watts HP CW Continuous Wave
TYPICAL SPECIFICATIONS
Center Wavelength 1550nm
Insertion Loss <=1.0dB(1~2W Power), <=1.2dB(3~10W Power)
Isolation >=40dB(1~2W Power), >=20dB (3~10W Power)
Cross Talk >=45dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

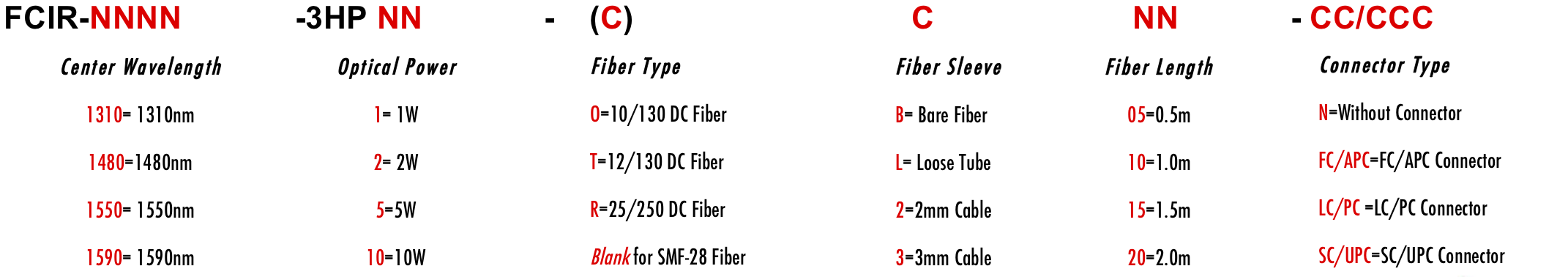

ORDERING INFORMATION/PART NUMBER(PN)
