1103nm 4-port PM Optical Circulator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Circulator will transmit the signal in a circular route. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCR 1103nm 1100nm 1090nm 1095nm 1096nm 1099nm 1105nm 1113nm 1110nm 1106nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPCR 1103nm 1100nm 1090nm 1095nm 1096nm 1099nm 1105nm 1113nm 1110nm 1106nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPCR 1103nm 1100nm 1090nm 1095nm 1096nm 1099nm 1105nm 1113nm 1110nm 1106nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda 4A 4B
TYPICAL SPECIFICATIONS
Center Wavelength 1103nm
Insertion Loss <=5.0dB(A Type), <=3.7dB(B Type)
Isolation >=30dB(A Type), >=20dB(B Type)
Cross Talk >=50dB
Return Loss >=50dB
Extinction Ratio >=20dB
Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

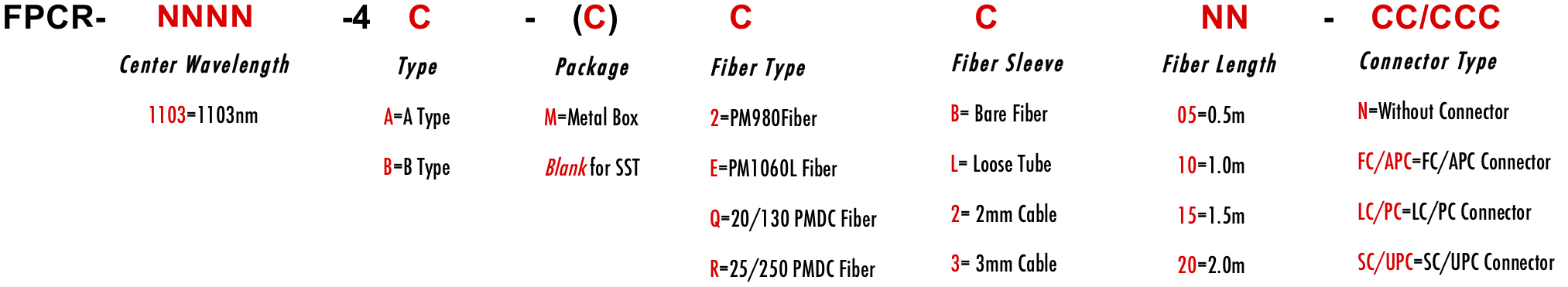

ORDERING INFORMATION/PART NUMBER(PN)
