830nm 3-port Optical Circulator for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Circulator will transmit the signal in a circular route. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCIR 830nm 840nm 820nm 835nm 836nm 825nm 826nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCIR 830nm 840nm 820nm 835nm 836nm 825nm 826nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCIR 830nm 840nm 820nm 835nm 836nm 825nm 826nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 3
TYPICAL SPECIFICATIONS
Center Wavelength 830nm
Insertion Loss <=2.0dB
Isolation >=18dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type HI780 Fiber or 780-HP Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

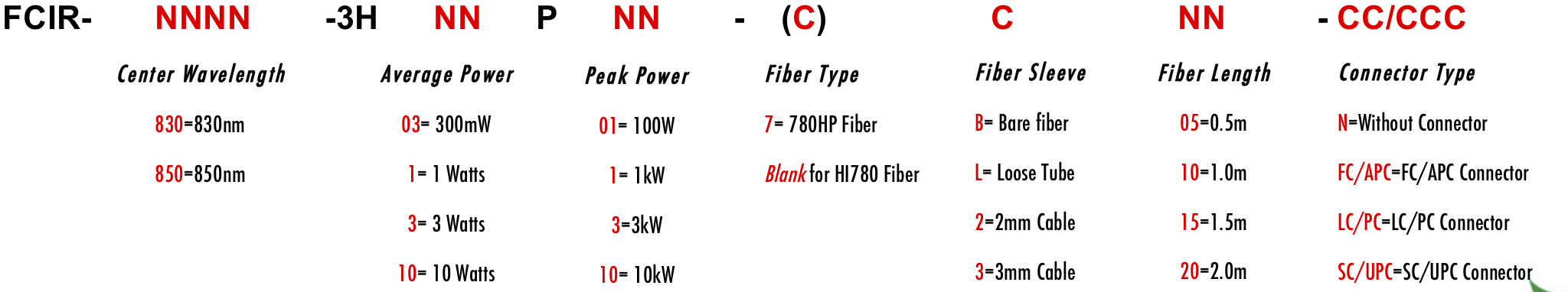

ORDERING INFORMATION/PART NUMBER(PN)
