780nm Fiber Mirror for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Fiber Mirror is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and High Reliability. The Fiber Mirror will reflect the transmitted signal backward to input fiber. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFMR 780nm 760nm 770nm 790nm 775nm 765nm 785nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFMR 780nm 760nm 770nm 790nm 775nm 765nm 785nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFMR 780nm 760nm 770nm 790nm 775nm 765nm 785nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä HI780 780HP PM850 PM980 PM780HP 5/125um 4/125um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP
TYPICAL SPECIFICATIONS
Center Wavelength 780nm
Insertion Loss <=1.4dB
PDL (SM Fiber Type) <=0.2dB
Extinction Ratio (PM Fiber Type) >=18dB
SM Fiber Type HI780 Fiber or 780-HP Fiber
PM Fiber Type PM850 Fiber or PM780-HP Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

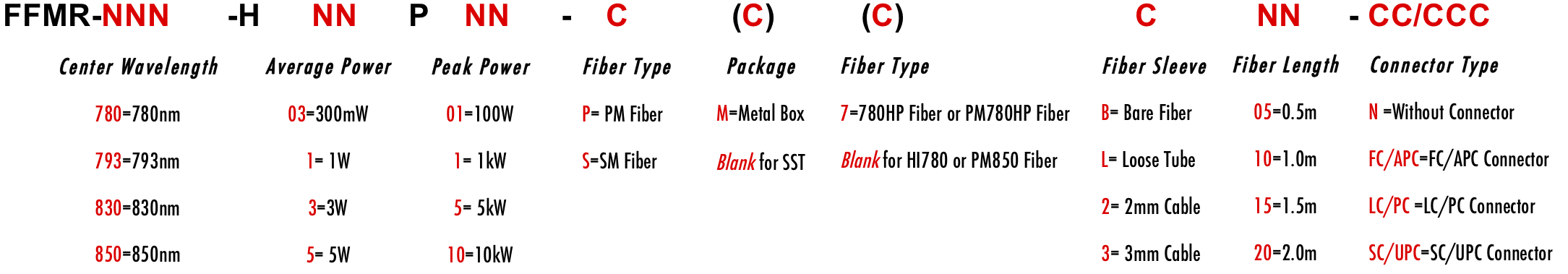

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
