660nm Fiber Mirror
DESCRIPTION
Haphit provides fiber based passive components. The Fiber Mirror is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and High Reliability. The Fiber Mirror will reflect the transmitted signal backward to input fiber. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFMR 660nm 650nm 670nm 655nm 665nm 666nm 654nm 652nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä 630HP 630-HP 3/125um 4/125um PM630HP PM630-HP SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFMR 660nm 650nm 670nm 655nm 665nm 666nm 654nm 652nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä 630HP 630-HP 3/125um 4/125um PM630HP PM630-HP SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FFMR 660nm 650nm 670nm 655nm 665nm 666nm 654nm 652nm Fiber Mirror Polarization Insensitive Faserspiegelpolarisation unempfindlich Insensible à la polarisation du miroir de fibre Fibra espejo polarización insensible Polarização de espelho de fibra insensível Polarizzazione della fibra dello specchio insensibile Kuitupeilin polarisaatio ei ole herkkä 630HP 630-HP 3/125um 4/125um PM630HP PM630-HP SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda
TYPICAL SPECIFICATIONS
Center Wavelength 660nm
Insertion Loss <=1.8dB
PDL (SM Fiber Type) <=0.2dB
Extinction Ratio (PM Fiber Type) >=16dB
SM Fiber Type 630-HP Fiber
PM Fiber Type PM630-HP Fiber
Max. Optical Power (CW) 25mW
Operating Temperature 0~50degreeC

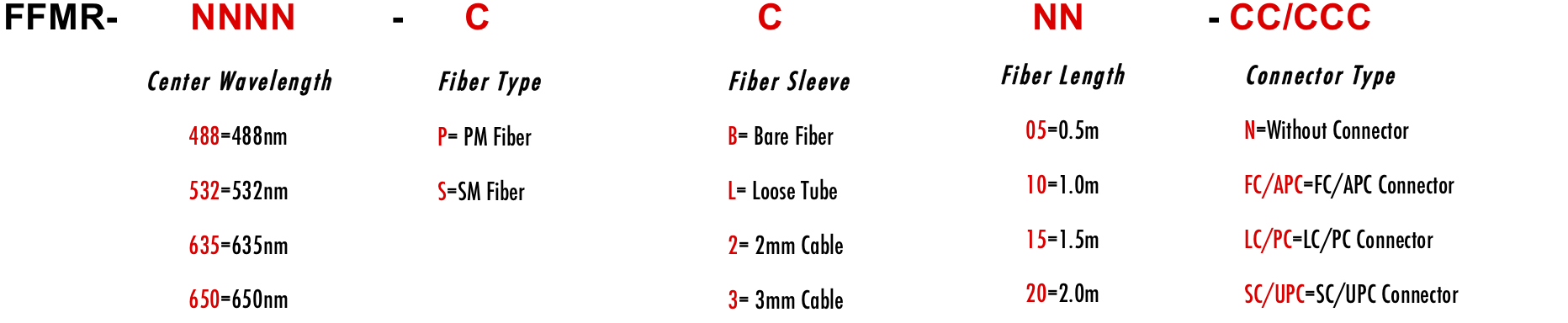

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
