1064nm 1x4/2x4/4x4 Filter Splitter

DESCRIPTION
Haphit provides fiber based passive components. The Optical Filter Splitter is made by micro-optics package technology with fiber in and fiber out. It features Wide & Flat Spectrum and Various Configuration. The 1x4/2x4/4x4 Filter Splitter will split the signal into 4 channels at an even ratio or uneven ratio on request. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFFM 1064nm 1064nm 1040nm 1084nm 1045nm 1050nm 1053nm 1056nm 1060nm 1063nm 1065nm 1070nm 1075nm 1080nm 1083nm Optical Filter Coupler Splitter Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad FFFM 1064nm 1064nm 1040nm 1084nm 1045nm 1050nm 1053nm 1056nm 1060nm 1063nm 1065nm 1070nm 1075nm 1080nm 1083nm Optical Filter Coupler Splitter Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad FFFM 1064nm 1064nm 1040nm 1084nm 1045nm 1050nm 1053nm 1056nm 1060nm 1063nm 1065nm 1070nm 1075nm 1080nm 1083nm Optical Filter Coupler Splitter Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 1x4 2x4 4x4
TYPICAL SPECIFICATIONS
Center Wavelength 1064nm
Bandwidth +/-20nm
Configuration 1x4 or 2x4 or 4x4
Insertion Loss <=7.8dB
Uniformity <=1.0dB
Return Loss >=50dB
PDL <=0.20dB
Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

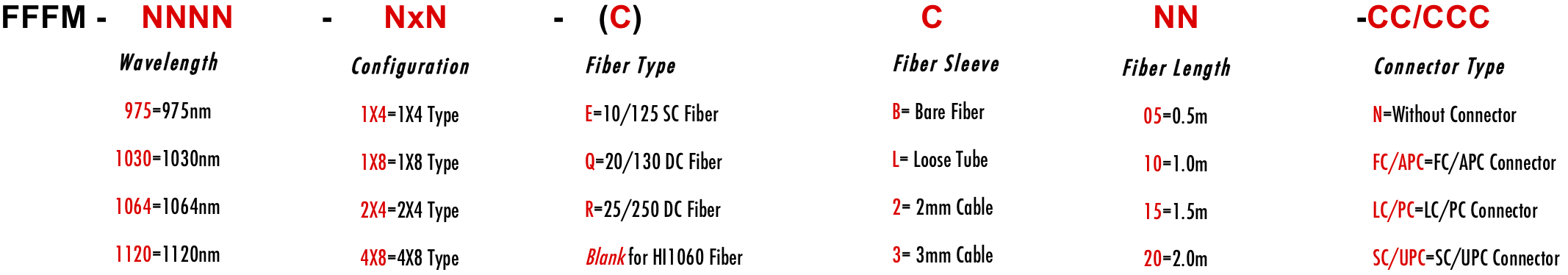

ORDERING INFORMATION/PART NUMBER(PN)
