1070nm High Power Optical Filter Coupler

DESCRIPTION
Haphit provides fiber based passive components. The Optical Filter Coupler is made by micro-optics package technology with fiber in and fiber out. It features Wide & Flat Spectrum and Various Split Ratio. The Optical Filter Coupler will split the signal into 2 or more channels at a certain ratio. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFFC 1070nm 1050nm 1090nm 1053nm 1055nm 1056nm 1060nm 1063nm 1064nm 1065nm 1075nm 1080nm 1083nm 1085nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile 1x2 2x2 HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FFFC 1070nm 1050nm 1090nm 1053nm 1055nm 1056nm 1060nm 1063nm 1064nm 1065nm 1075nm 1080nm 1083nm 1085nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile 1x2 2x2 HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FFFC 1070nm 1050nm 1090nm 1053nm 1055nm 1056nm 1060nm 1063nm 1064nm 1065nm 1075nm 1080nm 1083nm 1085nm Optical Filter Coupler Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile 1x2 2x2 HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave 00115 0115 0215 0315 0415 0515 0615 0715 0815 0915 1015 1115 1215 1315 1415 1515 1615 1715 1815 1915 2015 2115 2215 2315 2415 2515 2615 2715 2815 2915 3015 3115 3215 3315 3415 3515 3615 3715 3815 3915 4015 4115 4215 4315 4415 4515 4615 4715 4815 4915 5015 5115 5215 5315 5415 5515 5615 5715 5815 5915 6015 6115 6215 6315 6415 6515 6615 6715 6815 6915 7015 7115 7215 7315 7415 7515 7615 7715 7815 7915 8015 8115 8215 8315 8415 8515 8615 8715 8815 8915 9015 9115 9215 9315 9415 9515 9615 9715 9815 9915 0011A 011A 021A 031A 041A 051A 061A 071A 081A 091A 101A 111A 121A 131A 141A 151A 161A 171A 181A 191A 201A 211A 221A 231A 241A 251A 261A 271A 281A 291A 301A 311A 321A 331A 341A 351A 361A 371A 381A 391A 401A 411A 421A 431A 441A 451A 461A 471A 481A 491A 501A 511A 521A 531A 541A 551A 561A 571A 581A 591A 601A 611A 621A 631A 641A 651A 661A 671A 681A 691A 701A 711A 721A 731A 741A 751A 761A 771A 781A 791A 801A 811A 821A 831A 841A 851A 861A 871A 881A 891A 901A 911A 921A 931A 941A 951A 961A 971A 981A 991A 00125 0125 0225 0325 0425 0525 0625 0725 0825 0925 1025 1125 1225 1325 1425 1525 1625 1725 1825 1925 2025 2125 2225 2325 2425 2525 2625 2725 2825 2925 3025 3125 3225 3325 3425 3525 3625 3725 3825 3925 4025 4125 4225 4325 4425 4525 4625 4725 4825 4925 5025 5125 5225 5325 5425 5525 5625 5725 5825 5925 6025 6125 6225 6325 6425 6525 6625 6725 6825 6925 7025 7125 7225 7325 7425 7525 7625 7725 7825 7925 8025 8125 8225 8325 8425 8525 8625 8725 8825 8925 9025 9125 9225 9325 9425 9525 9625 9725 9825 9925 0012A 012A 022A 032A 042A 052A 062A 072A 082A 092A 102A 112A 122A 132A 142A 152A 162A 172A 182A 192A 202A 212A 222A 232A 242A 252A 262A 272A 282A 292A 302A 312A 322A 332A 342A 352A 362A 372A 382A 392A 402A 412A 422A 432A 442A 452A 462A 472A 482A 492A 502A 512A 522A 532A 542A 552A 562A 572A 582A 592A 602A 612A 622A 632A 642A 652A 662A 672A 682A 692A 702A 712A 722A 732A 742A 752A 762A 772A 782A 792A 802A 812A 822A 832A 842A 852A 862A 872A 882A 892A 902A 912A 922A 932A 942A 952A 962A 972A 982A 992A
TYPICAL SPECIFICATIONS
Center Wavelength 1070nm
Bandwidth +/-20nm
Split Ratio 1:99, 2:98, 5:95, 10:90, 20:80, 30:70, 40:60, 50:50
Configuration 1x2 or 2x2
Excess Loss <=1.0dB (1x2), <=1.4dB (2x2)
Return Loss >=50dB
PDL <=0.15dB
Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~50degreeC

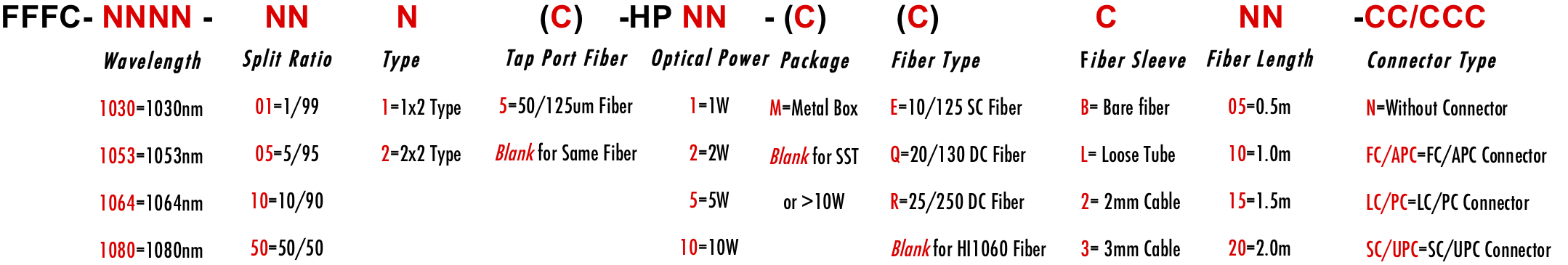

ORDERING INFORMATION/PART NUMBER(PN)
