793nm MM 1x4/2x4/4x4 Filter Splitter for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Optical Filter Splitter is made by micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Wide & Flat Spectrum and Various Configuration. The 1x4/2x4/4x4 Filter Splitter will split the signal into 4 channels at an even ratio or uneven ratio on request. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMTM 793nm 770nm 813nm 775nm 776nm 780nm 785nm 790nm 795nm 800nm 808nm 805nm 810nm Optical Filter Coupler Splitter Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile Multimode monimuoto Multimodo Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FMTM 793nm 770nm 813nm 775nm 776nm 780nm 785nm 790nm 795nm 800nm 808nm 805nm 810nm Optical Filter Coupler Splitter Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile Multimode monimuoto Multimodo Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FMTM 793nm 770nm 813nm 775nm 776nm 780nm 785nm 790nm 795nm 800nm 808nm 805nm 810nm Optical Filter Coupler Splitter Polarization Insensitive Power Splitter Tap Ratio Thin film Coating Optisen suodattimen liittimen polarisaatioherkkä virranjakaja Hanna-suhde Ohut kalvopäällyste Coupleur de filtre optique Splitter de puissance insensible à la polarisation Ratio de prise Revêtement en couche mince Filtro Óptico Acoplador Polarização Insensível Poder Divisor Tap Ratio Revestimento de película fina Acoplador de filtro óptico Polarización Divisor de potencia insensible Relación de derivación Recubrimiento de película delgada Optische Filterkoppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Dünnschichtbeschichtung Accoppiatore filtro ottico Polarizzazione Insensibile Potenza Splitter Tap Rapporto Rivestimento a film sottile Multimode monimuoto Multimodo Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 1X4 2X4 4X4
TYPICAL SPECIFICATIONS
Center Wavelength 793nm
Bandwidth +/-15nm
Configuration 1x4 or 2x4 or 4x4
Insertion Loss <=8.8dB
Uniformity <=1.5dB
Return Loss >=35dB
Fiber Type 50/125um or 62.5/125um MM Fiber
50/125um OM3 MM Fiber
105/125um MM Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

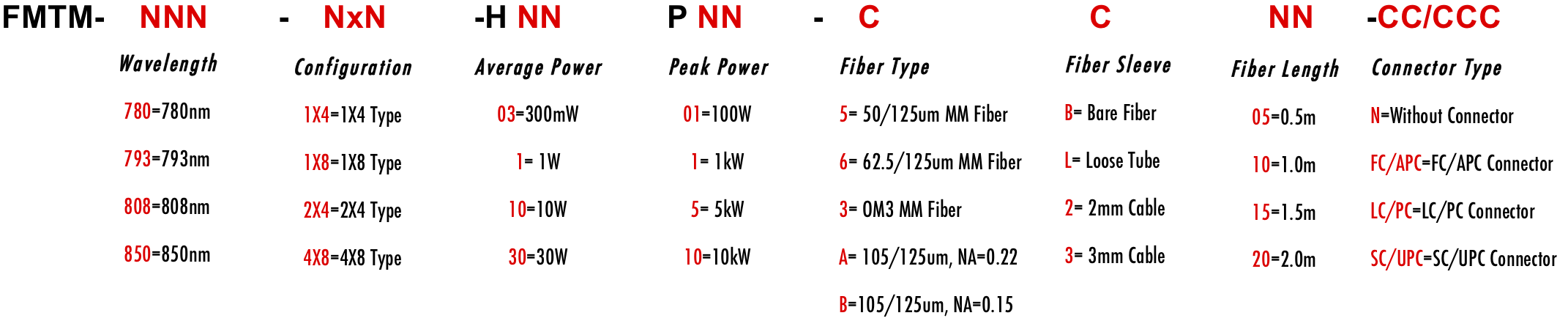

ORDERING INFORMATION/PART NUMBER(PN)
