1310nm 1X10/2X10 Wideband Fused Splitter
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Configuration. The 1X10/2X10 Wideband Fused Splitter will split the signal into 10 channels at an even ratio or uneven ratio on request. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLT 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad FCLT 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad FCLT 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad W1x10 W2x10
TYPICAL SPECIFICATIONS
Center Wavelength
1310nm
Bandwidth
+/-40nm
Configuration
1x10 or 2x10
Insertion Loss
<=13.0dB
Uniformity
<=2.0dB
Directivity
>=50dB
PDL
<=0.30dB
Fiber Type
SMF-28 Fiber or 10/130um DC Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~70degreeC

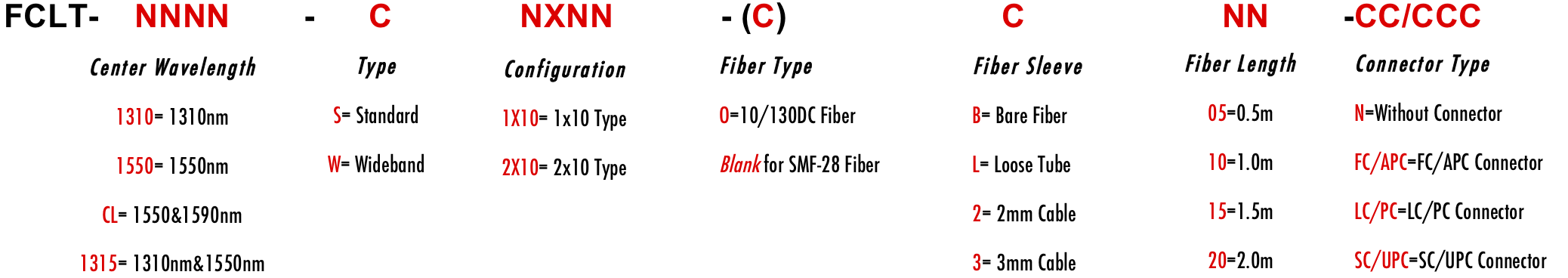

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
