1480nm Wideband Optical Fused Coupler for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Coupler is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Split Ratio. The Optical Fused Coupler will split the signal into 2 or more channels at a certain ratio. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLW 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm Wideband Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCLW 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm Wideband Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCLW 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm Wideband Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 001P1 01P1 02P1 03P1 04P1 05P1 06P1 07P1 08P1 09P1 10P1 11P1 12P1 13P1 14P1 15P1 16P1 17P1 18P1 19P1 20P1 21P1 22P1 23P1 24P1 25P1 26P1 27P1 28P1 29P1 30P1 31P1 32P1 33P1 34P1 35P1 36P1 37P1 38P1 39P1 40P1 41P1 42P1 43P1 44P1 45P1 46P1 47P1 48P1 49P1 50P1 51P1 52P1 53P1 54P1 55P1 56P1 57P1 58P1 59P1 60P1 61P1 62P1 63P1 64P1 65P1 66P1 67P1 68P1 69P1 70P1 71P1 72P1 73P1 74P1 75P1 76P1 77P1 78P1 79P1 80P1 81P1 82P1 83P1 84P1 85P1 86P1 87P1 88P1 89P1 90P1 91P1 92P1 93P1 94P1 95P1 96P1 97P1 98P1 99P1 001P2 01P2 02P2 03P2 04P2 05P2 06P2 07P2 08P2 09P2 10P2 11P2 12P2 13P2 14P2 15P2 16P2 17P2 18P2 19P2 20P2 21P2 22P2 23P2 24P2 25P2 26P2 27P2 28P2 29P2 30P2 31P2 32P2 33P2 34P2 35P2 36P2 37P2 38P2 39P2 40P2 41P2 42P2 43P2 44P2 45P2 46P2 47P2 48P2 49P2 50P2 51P2 52P2 53P2 54P2 55P2 56P2 57P2 58P2 59P2 60P2 61P2 62P2 63P2 64P2 65P2 66P2 67P2 68P2 69P2 70P2 71P2 72P2 73P2 74P2 75P2 76P2 77P2 78P2 79P2 80P2 81P2 82P2 83P2 84P2 85P2 86P2 87P2 88P2 89P2 90P2 91P2 92P2 93P2 94P2 95P2 96P2 97P2 98P2 99P2 001A1 01A1 02A1 03A1 04A1 05A1 06A1 07A1 08A1 09A1 10A1 11A1 12A1 13A1 14A1 15A1 16A1 17A1 18A1 19A1 20A1 21A1 22A1 23A1 24A1 25A1 26A1 27A1 28A1 29A1 30A1 31A1 32A1 33A1 34A1 35A1 36A1 37A1 38A1 39A1 40A1 41A1 42A1 43A1 44A1 45A1 46A1 47A1 48A1 49A1 50A1 51A1 52A1 53A1 54A1 55A1 56A1 57A1 58A1 59A1 60A1 61A1 62A1 63A1 64A1 65A1 66A1 67A1 68A1 69A1 70A1 71A1 72A1 73A1 74A1 75A1 76A1 77A1 78A1 79A1 80A1 81A1 82A1 83A1 84A1 85A1 86A1 87A1 88A1 89A1 90A1 91A1 92A1 93A1 94A1 95A1 96A1 97A1 98A1 99A1 001A2 01A2 02A2 03A2 04A2 05A2 06A2 07A2 08A2 09A2 10A2 11A2 12A2 13A2 14A2 15A2 16A2 17A2 18A2 19A2 20A2 21A2 22A2 23A2 24A2 25A2 26A2 27A2 28A2 29A2 30A2 31A2 32A2 33A2 34A2 35A2 36A2 37A2 38A2 39A2 40A2 41A2 42A2 43A2 44A2 45A2 46A2 47A2 48A2 49A2 50A2 51A2 52A2 53A2 54A2 55A2 56A2 57A2 58A2 59A2 60A2 61A2 62A2 63A2 64A2 65A2 66A2 67A2 68A2 69A2 70A2 71A2 72A2 73A2 74A2 75A2 76A2 77A2 78A2 79A2 80A2 81A2 82A2 83A2 84A2 85A2 86A2 87A2 88A2 89A2 90A2 91A2 92A2 93A2 94A2 95A2 96A2 97A2 98A2 99A2
TYPICAL SPECIFICATIONS
Center Wavelength 1480nm
Bandwidth +/-40nm
Split Ratio 0.1:99.9, 1:99, 2:98, 5:95, 10:90, 20:80, 30:70, 40:60, 50:50
Configuration 1x2 or 2x2
Excess Loss <=0.45dB
Return Loss >=40dB
Directivity >=50dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 30W, 40W, 50W, 60W, 80W, 100W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

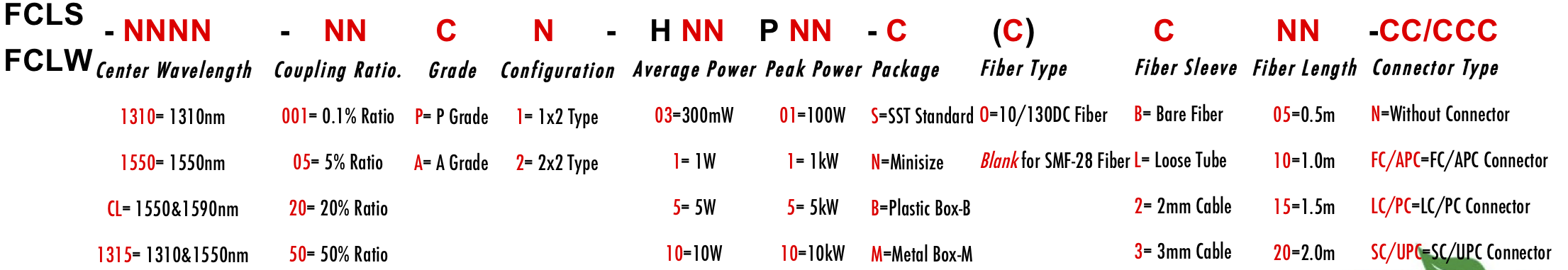

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
