1480nm 1x8/2x8/4x8 Wideband Fused Splitter
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Configuration. The 1x8/2x8/4x8 Wideband Fused Splitter will split the signal into 8 channels at an even ratio or uneven ratio on request. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLT 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad FCLT 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad FCLT 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad W1x8 W2x8 W4x8
TYPICAL SPECIFICATIONS
Center Wavelength
1480nm
Bandwidth
+/-40nm
Configuration
1x8 or 2x8 or 4x8
Insertion Loss
<=10.2dB
Uniformity
<=1.2dB
Directivity
>=50dB
PDL
<=0.20dB
Fiber Type
SMF-28 Fiber or 10/130um DC Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~70degreeC

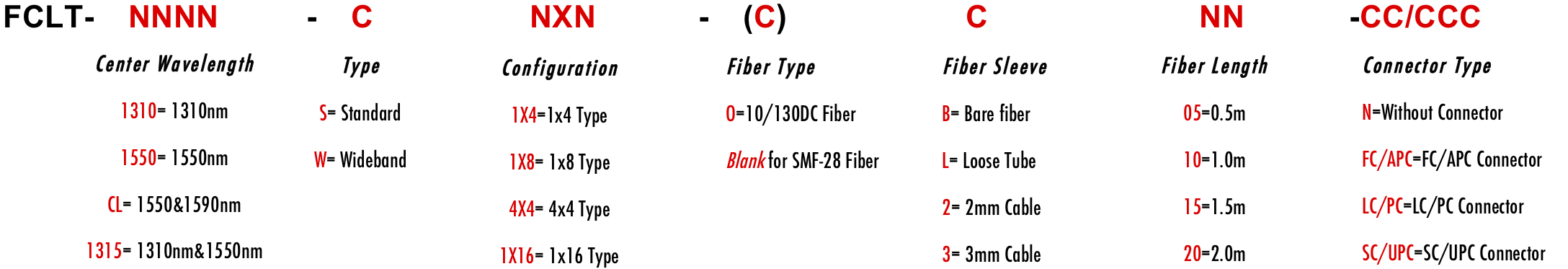

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
