1550nm MM 1x3 Fused Splitter
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features low Excess Loss and various Configuration. The 1x3 Fused Splitter will split the signal into 3 channels at an even ratio or uneven ratio on request. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMCM 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Multimode monimuoto Multimodo Graded Index Step GIMM SIMM 50/125um 62.5/125um FMCM 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Multimode monimuoto Multimodo Graded Index Step GIMM SIMM 50/125um 62.5/125um FMCM 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Multimode monimuoto Multimodo Graded Index Step GIMM SIMM 50/125um 62.5/125um 1X3
TYPICAL SPECIFICATIONS
Center Wavelength
1550nm
Bandwidth
+/-10nm
Configuration
1x3
Insertion Loss
<=6.8dB
Uniformity
<=1.2dB
Directivity
>=40dB
Fiber Type
50/125um or 62.5/125um MM Fiber
50/125um OM3 MM Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~50degreeC

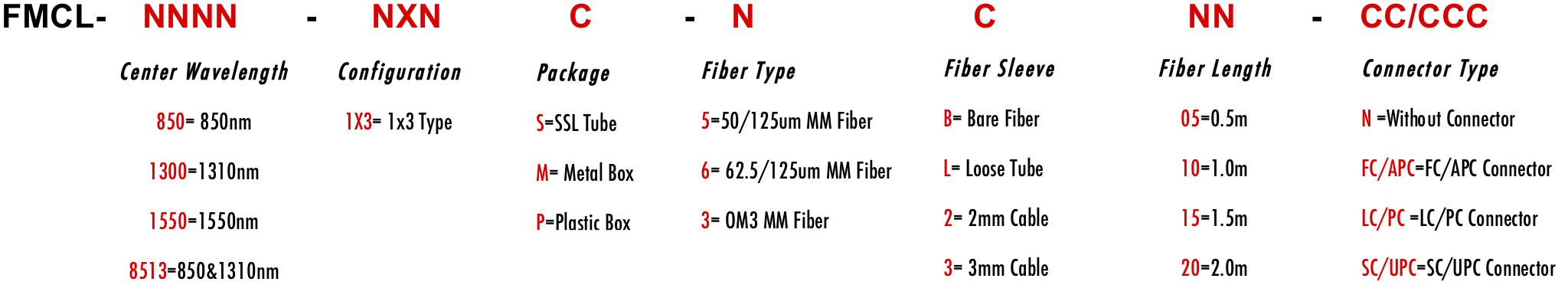

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
