1550nm 1X6/2X6/3X6/4X6/6X6 Wideband Fused Splitter for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Configuration. The 1X6/2X6/3X6/4X6/6X6 Wideband Fused Splitter will split the signal into 6 channels at an even ratio or uneven ratio on request. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLT 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCLT 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCLT 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP W1X6 W2X6 W3X6 W4X6 W6X6
TYPICAL SPECIFICATIONS
Center Wavelength 1550nm
Bandwidth +/-40nm
Configuration 1X6 or 2X6 or 3X6 or 4X6 or 6X6
Insertion Loss <=9.7dB
Uniformity <=1.6dB
Directivity >=50dB
PDL <=0.25dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W, 40W, 50W, 60W, 80W, 100W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

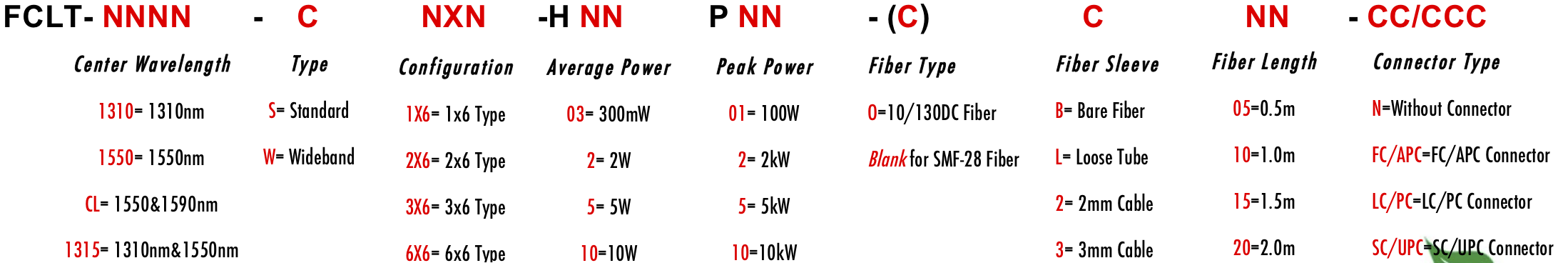

ORDERING INFORMATION/PART NUMBER(PN)
