1590nm 1x3/3x3 Wideband Monolithic Fused Splitter for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Configuration. The 1x3/3x3 Wideband Monolithic Fused Splitter will split the signal into 3 channels at an even ratio or uneven ratio on request. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLO 1590nm 1550nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCLO 1590nm 1550nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCLO 1590nm 1550nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP W1x3 W3x3
TYPICAL SPECIFICATIONS
Center Wavelength 1590nm
Bandwidth +/-40nm
Configuration 1x3 or 3x3
Insertion Loss <=6.0dB(1x3); <=6.6dB(3x3)
Uniformity <=1.0dB(1x3); <=2.2dB(3x3)
Directivity >=50dB
PDL <=0.20dB(1x3); <=0.30dB(3x3)
Fiber Type SMF-28 Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

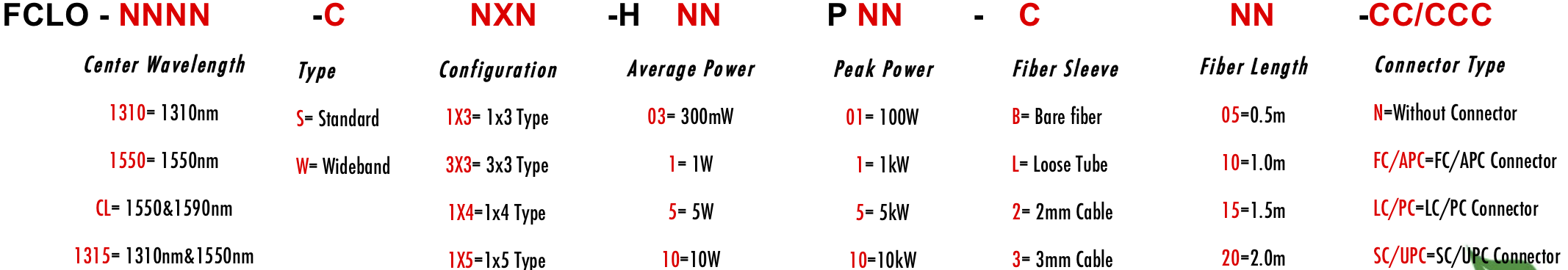

ORDERING INFORMATION/PART NUMBER(PN)
