1625nm 1X6/2X6 Splitter
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Configuration. The 1X6/2X6 Splitter will split the signal into 6 channels at an even ratio or uneven ratio on request. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLT 1625nm 1600nm 1650nm 1605nm 1610nm 1615nm 1620nm 1630nm 1635nm 1640nm 1645nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 SM1950 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad FCLT 1625nm 1600nm 1650nm 1605nm 1610nm 1615nm 1620nm 1630nm 1635nm 1640nm 1645nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 SM1950 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad FCLT 1625nm 1600nm 1650nm 1605nm 1610nm 1615nm 1620nm 1630nm 1635nm 1640nm 1645nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 SM1950 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad 1X6 2X6
TYPICAL SPECIFICATIONS
Center Wavelength
1625nm
Bandwidth
+/-20nm
Configuration
1X6 or 2X6
Insertion Loss
<=9.9dB
Uniformity
<=1.8dB
Directivity
>=50dB
PDL
<=0.30dB
Fiber Type
SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~50degreeC

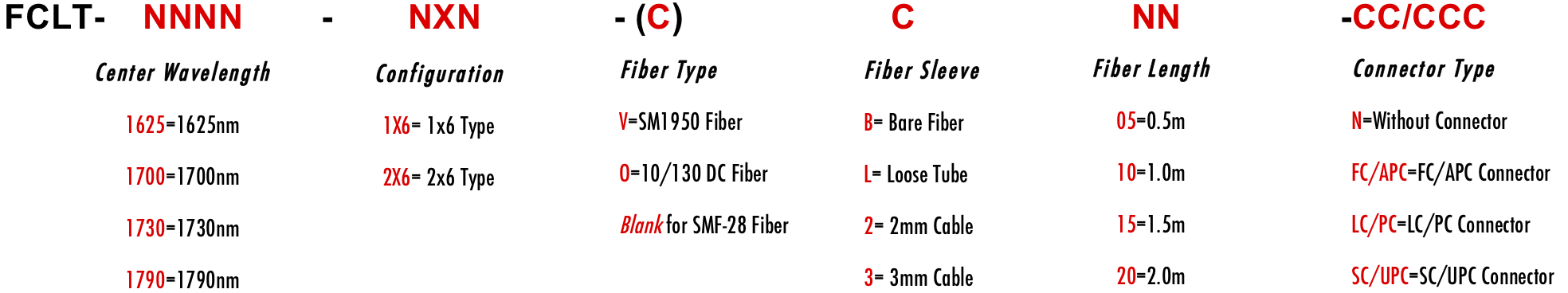

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
