1700nm 1x8/2x8/4x8 Fused Splitter
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Configuration. The 1x8/2x8/4x8 Fused Splitter will split the signal into 8 channels at an even ratio or uneven ratio on request. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLT 1700nm 1670nm 1730nm 1675nm 1680nm 1685nm 1690nm 1695nm 1705nm 1710nm. 1715nm 1720nm 1725nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 SM1950 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad FCLT 1700nm 1670nm 1730nm 1675nm 1680nm 1685nm 1690nm 1695nm 1705nm 1710nm. 1715nm 1720nm 1725nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 SM1950 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad FCLT 1700nm 1670nm 1730nm 1675nm 1680nm 1685nm 1690nm 1695nm 1705nm 1710nm. 1715nm 1720nm 1725nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice SMF-28 SMF28 SM1950 LMA 8/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad 1x8 2x8 4x8
TYPICAL SPECIFICATIONS
Center Wavelength
1700nm
Bandwidth
+/-20nm
Configuration
1x8 or 2x8 or 4x8
Insertion Loss
<=11.0dB
Uniformity
<=1.2dB
Directivity
>=50dB
PDL
<=0.20dB
Fiber Type
SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~50degreeC

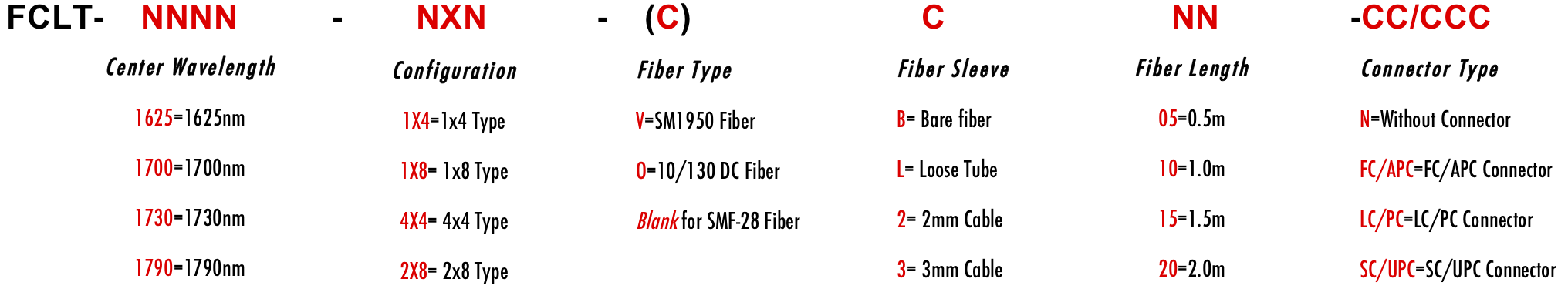

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
