1180nm PM Optical Fused Coupler for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Coupler is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features low Excess Loss and various Split Ratio. The Optical Fused Coupler will split the signal into 2 or more channels at a certain ratio. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCL 1180nm 1160nm 1200nm 1165nm 1170nm 1175nm 1185nm 1190nm 1195nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCL 1180nm 1160nm 1200nm 1165nm 1170nm 1175nm 1185nm 1190nm 1195nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCL 1180nm 1160nm 1200nm 1165nm 1170nm 1175nm 1185nm 1190nm 1195nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 0011 011 021 031 041 051 061 071 081 091 101 111 121 131 141 151 161 171 181 191 201 211 221 231 241 251 261 271 281 291 301 311 321 331 341 351 361 371 381 391 401 411 421 431 441 451 461 471 481 491 501 511 521 531 541 551 561 571 581 591 601 611 621 631 641 651 661 671 681 691 701 711 721 731 741 751 761 771 781 791 801 811 821 831 841 851 861 871 881 891 901 911 921 931 941 951 961 971 981 991 0012 012 022 032 042 052 062 072 082 092 102 112 122 132 142 152 162 172 182 192 202 212 222 232 242 252 262 272 282 292 302 312 322 332 342 352 362 372 382 392 402 412 422 432 442 452 462 472 482 492 502 512 522 532 542 552 562 572 582 592 602 612 622 632 642 652 662 672 682 692 702 712 722 732 742 752 762 772 782 792 802 812 822 832 842 852 862 872 882 892 902 912 922 932 942 952 962 972 982 992
TYPICAL SPECIFICATIONS
Center Wavelength 1180nm
Bandwidth +/-10nm
Split Ratio 0.1:99.9, 1:99, 2:98, 5:95, 10:90, 20:80, 30:70, 40:60, 50:50
Configuration 1x2 or 2x2
Excess Loss <=1.0dB
Directivity >=45dB
Extinction Ratio >=18dB
Fiber Type PM980 Fiber or PM1060L Fiber
10/125um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 30W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

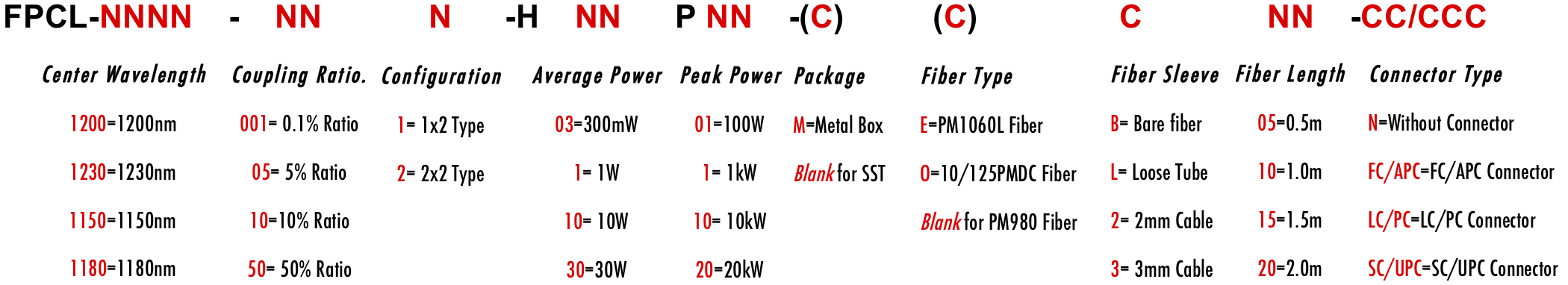

ORDERING INFORMATION/PART NUMBER(PN)
