	808nm High Power MM 1x4 Splitter for Pulse Power (>100um MM Fiber)

DESCRIPTION

Haphit provides fiber based passive components. The MM High Power Splitter is made by micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features low Excess Loss and various Configuration. The MM High Power Splitter will split the signal into 2 or more channels at an even ratio. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.

FMHS 808nm 788nm 830nm 790nm 793nm 795nm 800nm 805nm 810nm 815nm 820nm 825nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse Multimode monimuoto Multimodo 1x4 2x2 Graded Index Step GIMM SIMM 105/125um 200/220um 220/242um 400/440um 600/660um NA=0.12 NA=0.22 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FMHS 808nm 788nm 830nm 790nm 793nm 795nm 800nm 805nm 810nm 815nm 820nm 825nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse Multimode monimuoto Multimodo 1x4 2x2 Graded Index Step GIMM SIMM 105/125um 200/220um 220/242um 400/440um 600/660um NA=0.12 NA=0.22 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FMHS 808nm 788nm 830nm 790nm 793nm 795nm 800nm 805nm 810nm 815nm 820nm 825nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse Multimode monimuoto Multimodo 1x4 2x2 Graded Index Step GIMM SIMM 105/125um 200/220um 220/242um 400/440um 600/660um NA=0.12 NA=0.22 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 1x4

TYPICAL SPECIFICATIONS

Center Wavelength	808nm
Configuration	1x4
Split Ratio	Even Split
Directivity	>=30dB
Fiber Type	105/125um MM Fiber NA=0.15 105/125um MM Fiber NA=0.22 200/220um MM Fiber NA=0.22 400/440um MM Fiber NA=0.22
Max. Average Power	300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 30W, 40W, 50W, 60W, 80W, 100W
Max. Peak Power for Pulse	100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature	0~50degreeC

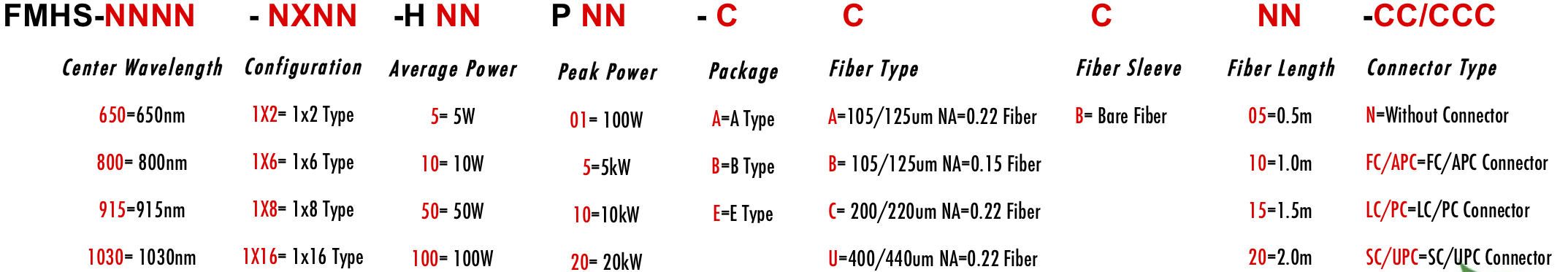

ORDERING INFORMATION/PART NUMBER(PN)
