830nm 1X5 Fused Splitter
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Configuration. The 1X5 Fused Splitter will split the signal into 5 channels at an even ratio or uneven ratio on request. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLT 830nm 810nm 850nm 815nm 820nm 825nn 835nm 840nm 845nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad FCLT 830nm 810nm 850nm 815nm 820nm 825nn 835nm 840nm 845nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad FCLT 830nm 810nm 850nm 815nm 820nm 825nn 835nm 840nm 845nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 1X5
TYPICAL SPECIFICATIONS
Center Wavelength
830nm
Bandwidth
+/-10nm
Configuration
1X5
Insertion Loss
<=9.4dB
Uniformity
<=1.6dB
Directivity
>=50dB
PDL
<=0.30dB
Fiber Type
HI780 Fiber or 780-HP Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~50degreeC

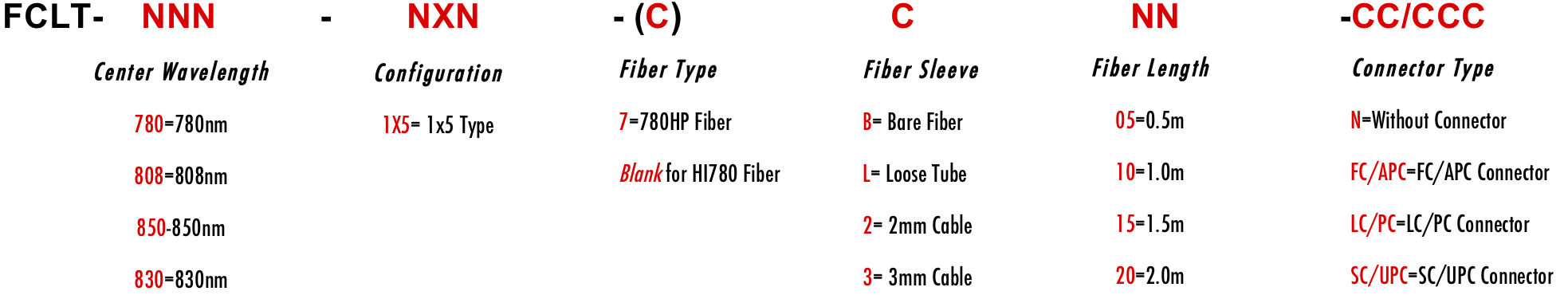

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
