850nm Ultra Wideband Optical Fused Coupler

DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Coupler is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Split Ratio. The Optical Fused Coupler will split the signal into 2 or more channels at a certain ratio. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLU 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm Ultra Wideband Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 HI780 780HP 5/125um 4/125um SC Single Clad Cladding 3-port Y Type FCLU 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm Ultra Wideband Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 HI780 780HP 5/125um 4/125um SC Single Clad Cladding 3-port Y Type FCLU 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm Ultra Wideband Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice Sicherung Coupleur Fusionné Optique Polariseur Insensible à la Puissance Splitter Ratio de Tap Fusion Fusion Splice Fusible Optisen sulakeliittimen polarisaatioherkkä virranjakaja Tap Tap Suhde Fusion Splice Sulake Acoplador con fusible óptico Polarización Divisor de potencia insensible Relación de derivación Fusible Fusible de empalme Acoplador com fusível óptico Polarização Insensível Divisor de potência Relação de derivação Fusion Splice Fuse 1x2 2x2 HI780 780HP 5/125um 4/125um SC Single Clad Cladding 3-port Y Type 0011A 011A 021A 031A 041A 051A 061A 071A 081A 091A 101A 111A 121A 131A 141A 151A 161A 171A 181A 191A 201A 211A 221A 231A 241A 251A 261A 271A 281A 291A 301A 311A 321A 331A 341A 351A 361A 371A 381A 391A 401A 411A 421A 431A 441A 451A 461A 471A 481A 491A 501A 511A 521A 531A 541A 551A 561A 571A 581A 591A 601A 611A 621A 631A 641A 651A 661A 671A 681A 691A 701A 711A 721A 731A 741A 751A 761A 771A 781A 791A 801A 811A 821A 831A 841A 851A 861A 871A 881A 891A 901A 911A 921A 931A 941A 951A 961A 971A 981A 991 0012A 012A 022A 032A 042A 052A 062A 072A 082A 092A 102A 112A 122A 132A 142A 152A 162A 172A 182A 192A 202A 212A 222A 232A 242A 252A 262A 272A 282A 292A 302A 312A 322A 332A 342A 352A 362A 372A 382A 392A 402A 412A 422A 432A 442A 452A 462A 472A 482A 492A 502A 512A 522A 532A 542A 552A 562A 572A 582A 592A 602A 612A 622A 632A 642A 652A 662A 672A 682A 692A 702A 712A 722A 732A 742A 752A 762A 772A 782A 792A 802A 812A 822A 832A 842A 852A 862A 872A 882A 892A 902A 912A 922A 932A 942A 952A 962A 972A 982A 992A 0011B 011B 021B 031B 041B 051B 061B 071B 081B 091B 101B 111B 121B 131B 141B 151B 161B 171B 181B 191B 201B 211B 221B 231B 241B 251B 261B 271B 281B 291B 301B 311B 321B 331B 341B 351B 361B 371B 381B 391B 401B 411B 421B 431B 441B 451B 461B 471B 481B 491B 501B 511B 521B 531B 541B 551B 561B 571B 581B 591B 601B 611B 621B 631B 641B 651B 661B 671B 681B 691B 701B 711B 721B 731B 741B 751B 761B 771B 781B 791B 801B 811B 821B 831B 841B 851B 861B 871B 881B 891B 901B 911B 921B 931B 941B 951B 961B 971B 981B 991 0012B 012B 022B 032B 042B 052B 062B 072B 082B 092B 102B 112B 122B 132B 142B 152B 162B 172B 182B 192B 202B 212B 222B 232B 242B 252B 262B 272B 282B 292B 302B 312B 322B 332B 342B 352B 362B 372B 382B 392B 402B 412B 422B 432B 442B 452B 462B 472B 482B 492B 502B 512B 522B 532B 542B 552B 562B 572B 582B 592B 602B 612B 622B 632B 642B 652B 662B 672B 682B 692B 702B 712B 722B 732B 742B 752B 762B 772B 782B 792B 802B 812B 822B 832B 842B 852B 862B 872B 882B 892B 902B 912B 922B 932B 942B 952B 962B 972B 982B 992B
TYPICAL SPECIFICATIONS
Center Wavelength 850nm
Bandwidth +/-50nm
Split Ratio 1:99, 2:98, 5:95, 10:90, 20:80, 30:70, 40:60, 50:50
Configuration 1x2 or 2x2
Excess Loss <=1.0dB
Uniformity (50:50 Ratio) <=1.0dB
Directivity >=45dB
Fiber Type HI780 Fiber or 780-HP Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

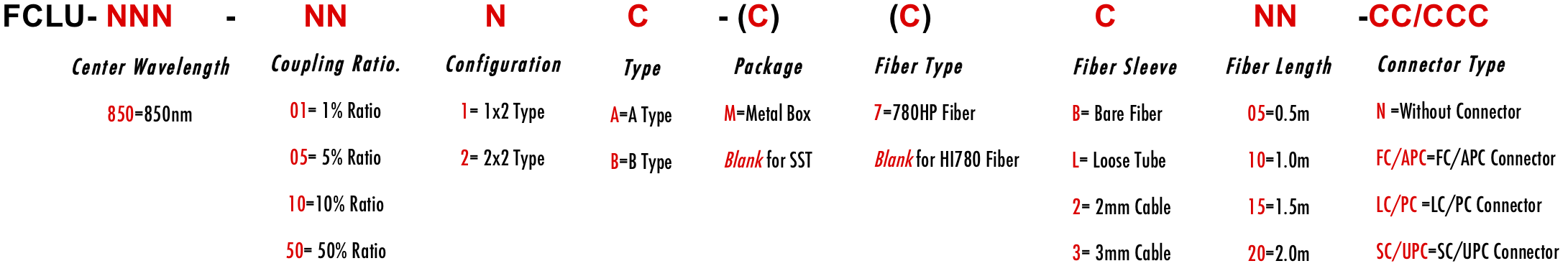

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
