850nm 1X6/2X6 Fused Splitter
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Configuration. The 1X6/2X6 Fused Splitter will split the signal into 6 channels at an even ratio or uneven ratio on request. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLT 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad FCLT 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad FCLT 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 1X6 2X6
TYPICAL SPECIFICATIONS
Center Wavelength
850nm
Bandwidth
+/-10nm
Configuration
1X6 or 2X6
Insertion Loss
<=10.3dB
Uniformity
<=1.8dB
Directivity
>=50dB
PDL
<=0.30dB
Fiber Type
HI780 Fiber or 780-HP Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~50degreeC

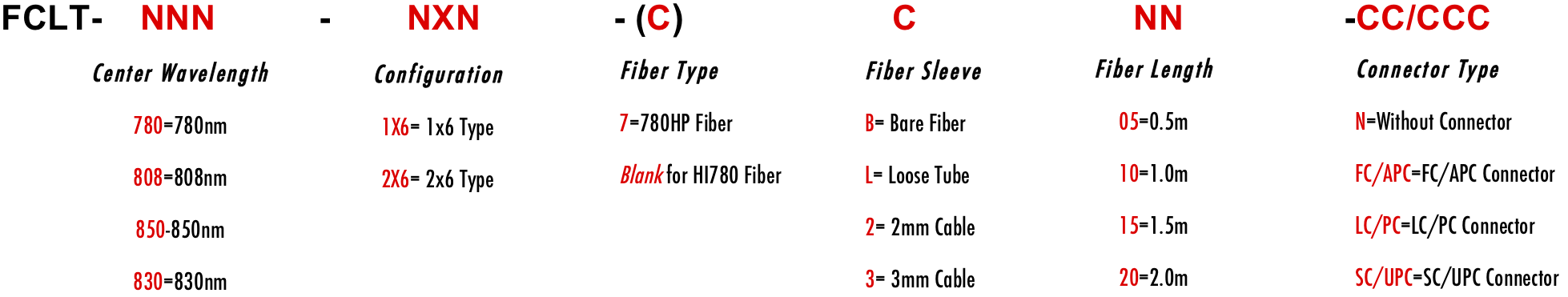

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
