488nm 1X5 Fused Splitter

DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Configuration. The 1X5 Fused Splitter will split the signal into 5 channels at an even ratio or uneven ratio on request. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLT 488nm 460nm 465nm 470nm 475nm 480nm 485nm 490nm 495nm 500nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice 460HP 460XP S460HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad FCLT 488nm 460nm 465nm 470nm 475nm 480nm 485nm 490nm 495nm 500nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice 460HP 460XP S460HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad FCLT 488nm 460nm 465nm 470nm 475nm 480nm 485nm 490nm 495nm 500nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice 460HP 460XP S460HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad 1X5
TYPICAL SPECIFICATIONS
Center Wavelength 488nm
Bandwidth +/-5nm
Configuration 1X5
Insertion Loss <=9.4dB
Uniformity <=2.0dB
Directivity >=50dB
Fiber Type 460HP Fiber
Max. Optical Power (CW) 100mW
Operating Temperature 0~50degreeC

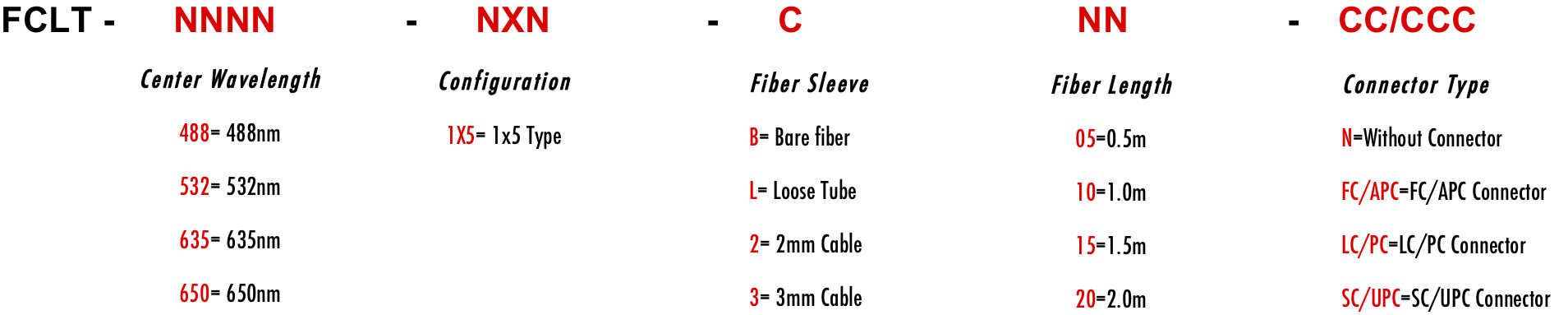

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
