635nm 1X9 Fused Splitter
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Configuration. The 1X9 Fused Splitter will split the signal into 9 channels at an even ratio or uneven ratio on request. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLT 635nm 600nm 650nm 605nm 610nm 615nm 620nm 625nm 630nm 640nm 645nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad FCLT 635nm 600nm 650nm 605nm 610nm 615nm 620nm 625nm 630nm 640nm 645nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad FCLT 635nm 600nm 650nm 605nm 610nm 615nm 620nm 625nm 630nm 640nm 645nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad 1X9
TYPICAL SPECIFICATIONS
Center Wavelength
635nm
Bandwidth
+/-5nm
Configuration
1x9
Insertion Loss
<=13.0dB
Uniformity
<=3.0dB
Directivity
>=50dB
Fiber Type
630HP Fiber
Max. Optical Power (CW)
100mW
Operating Temperature
0~50degreeC

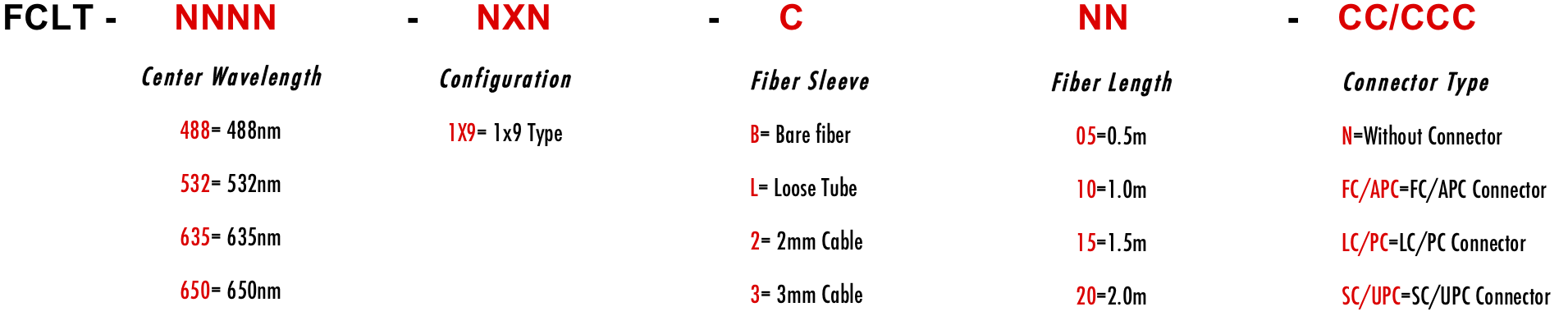

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
