690nm 1X16/2X16/4X16 Fused Splitter
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fused Splitter is made by micro-optics package technology with fiber in and fiber out. It features low Excess Loss and various Configuration. The 1X16/2X16/4X16 Fused Splitter will split the signal into 16 channels at an even ratio or uneven ratio on request. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCLT 690nm 670nm 710nm 675nm 680nm 685nm 695nm 700nm 705nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad FCLT 690nm 670nm 710nm 675nm 680nm 685nm 695nm 700nm 705nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad FCLT 690nm 670nm 710nm 675nm 680nm 685nm 695nm 700nm 705nm Optical Fused Coupler Polarization Insensitive Power Splitter Tap Ratio Fusion Splice Fuse Accoppiatore con fusibile ottico Polarizzazione Insensibile Potenza Splitter Rubinetto Rapporto Fusione Fusibile Optische Sicherung Koppler Polarisation Unempfindliche Leistung Splitter Tap Ratio Fusion Splice 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad 1x16 2x16 4x16
TYPICAL SPECIFICATIONS
Center Wavelength
690nm
Bandwidth
+/-5nm
Configuration
1x16 or 2x16 or 4x16
Insertion Loss
<=15.9dB
Uniformity
<=2.8dB
Directivity
>=50dB
Fiber Type
630HP Fiber
Max. Optical Power (CW)
100mW
Operating Temperature
0~50degreeC

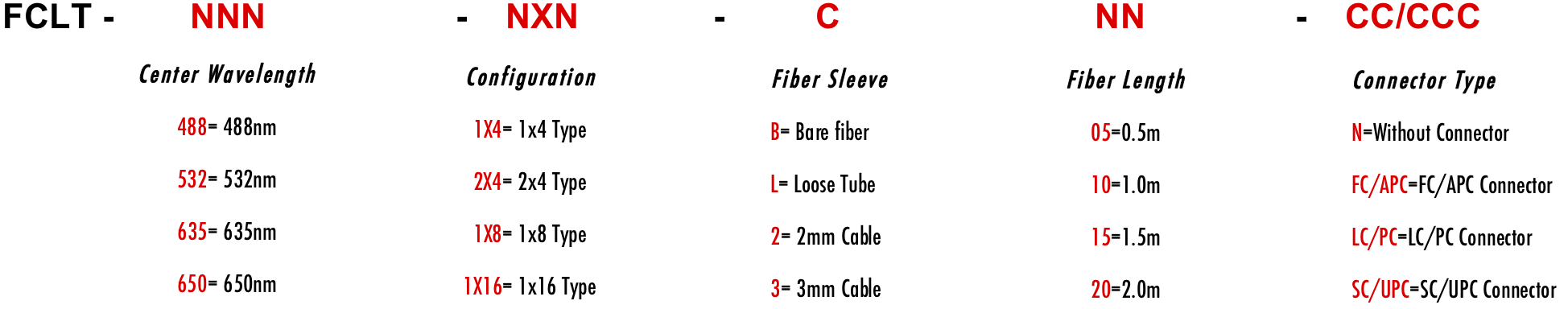

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
