1550nm Cladding Power Stripper
DESCRIPTION
Haphit provides fiber based passive components. The Cladding Power Stripper is made by Fusion Splice technology with fiber in and fiber out. It features High Strip Ratio and High Optical Power. The Cladding Power Stripper will trasmit the signal power and at the same time remove the residual pump light in the cladding. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PCTR 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover SMF-28 SMF28 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave PCTR 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover SMF-28 SMF28 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave PCTR 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover SMF-28 SMF28 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave PCTR 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover SMF-28 SMF28 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave 9115 9315 9515 9715 9815 1415
TYPICAL SPECIFICATIONS
Pump Wavelength 915nm, 950nm, 975nm, 980nm, 1480nm
Signal Wavelength 1550nm
Fiber Type 8/125um NA=0.12(M), 6/125um NA=0.18(M1),
10/130um NA=0.075(O), 12/130um NA=0.2(T), 15/130um NA=0.075(W),
Fiber Type 20/130um NA=0.075(Q), 25/250um NA=0.065(R), 25/300um NA=0.09(G),
25/400um NA=0.065(R1), 30/250um NA=0.06(R6), 30/400um NA=0.06(R3),
or specified by customer
Signal Insertion Loss <=0.3dB
Max. Stripped Pump Power (CW) 10W, 30W, 50W, 100W, 300W, 500W, 1000W
Max. Signal Power (CW) 10W, 50W, 100W, 200W, 500W, 1000W, 2000W
Strip Efficiency >=98%
Operating Temperature 0~50degreeC

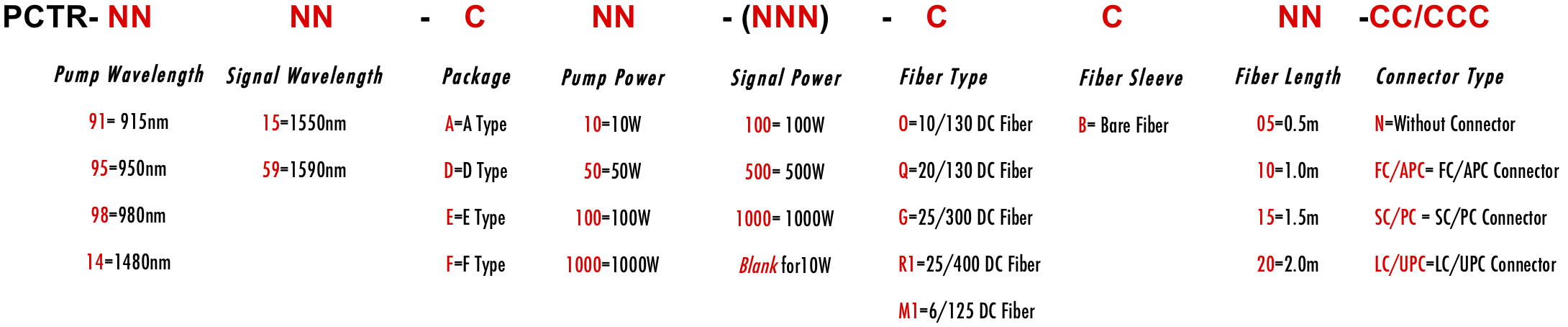

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
