1900nm Cladding Power Stripper for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Cladding Power Stripper is made by Fusion Splice technology with fiber in and fiber out. It features High Strip Ratio and High Optical Power. The Cladding Power Stripper will trasmit the signal power and at the same time remove the residual pump light in the cladding. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PCTR 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PCTR 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PCTR 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PCTR 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP 7990 8190 8390 8590 7890 9190 9390 9590 9790 9890 1590
TYPICAL SPECIFICATIONS
Pump Wavelength 793nm, 808nm, 830nm, 915nm, 950nm, 975nm, 980nm, 1550nm
Signal Wavelength 1900nm
Fiber Type 10/130um NA=0.15(O), 25/250um NA=0.09(R),
25/400um NA=0.09(R4) or specified by customer
Signal Insertion Loss <=0.3dB
Max. Stripped Pump Power 10W, 30W, 50W, 100W, 300W, 500W, 1000W
Max. Signal Average Power 10W, 50W, 100W, 200W, 500W, 1000W, 2000W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW, 50kW, 100kW
Strip Efficiency >=98%
Operating Temperature 0~50degreeC

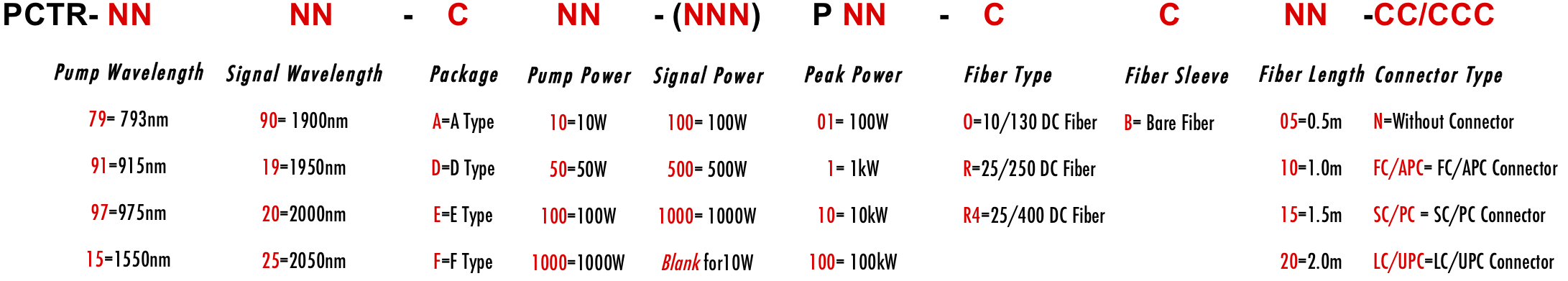

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
