750nm Singlemode PM Pump Laser Protector with Isolator for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The PM Pump Laser Protector with Isolator is made by Micro Optics Package technology with PM fiber in and PM fiber out. It features High Signal Isolation, Various Signal Ranges and high Extinction Ratio. The Pump Laser Protector with Isolator will pass pump light while at the same time block both backward signal and backward pump light to protect pump laser diode. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FSRI 750nm 740nm 770nm 745nm 755nm 760nm 765nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type PM850 PM780HP 4/125um 5/125umSC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FSRI 750nm 740nm 770nm 745nm 755nm 760nm 765nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type PM850 PM780HP 4/125um 5/125umSC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FSRI 750nm 740nm 770nm 745nm 755nm 760nm 765nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type PM850 PM780HP 4/125um 5/125umSC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FSRI 750nm 740nm 770nm 745nm 755nm 760nm 765nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type PM850 PM780HP 4/125um 5/125umSC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP F9IYY F9IYA F9IY5 F9I5Y F9I55 F9I5A F9IAY F9IA5 F9IAA F9YY F9YA F9Y5 F95Y F955 F95A F9AY F9A5 F9AA F8IYY F8IYA F8IY5 F8I5Y F8I55 F8I5A F8IAY F8IA5 F8IAA F8YY F8YA F8Y5 F85Y F855 F85A F8AY F8A5 F8AA F5IYY F5IYA F5IY5 F5I5Y F5I55 F5I5A F5IAY F5IA5 F5IAA F5YY F5YA F5Y5 F55Y F555 F55A F5AY F5A5 F5AA F2IYY F2IYA F2IY5 F2I5Y F2I55 F2I5A F2IAY F2IA5 F2IAA F2YY F2YA F2Y5 F25Y F255 F25A F2AY F2A5 F2AA S9IYY S9IYA S9IY5 S9I5Y S9I55 S9I5A S9IAY S9IA5 S9IAA S9YY S9YA S9Y5 S95Y S955 S95A S9AY S9A5 S9AA S8IYY S8IYA S8IY5 S8I5Y S8I55 S8I5A S8IAY S8IA5 S8IAA S8YY S8YA S8Y5 S85Y S855 S85A S8AY S8A5 S8AA S5IYY S5IYA S5IY5 S5I5Y S5I55 S5I5A S5IAY S5IA5 S5IAA S5YY S5YA S5Y5 S55Y S555 S55A S5AY S5A5 S5AA S2IYY S2IYA S2IY5 S2I5Y S2I55 S2I5A S2IAY S2IA5 S2IAA S2YY S2YA S2Y5 S25Y S255 S25A S2AY S2A5 S2AA
TYPICAL SPECIFICATIONS
Pump Laser Wavelength 750+/-10nm
Block Signal Wavelength Type 5: 1500-1620nm
Type 2: 1020-1120nm & 1500-1620nm
Type 8: 880-1100nm
Type 9: 1900-2070nm
Pump Insertion Loss <=1.5dB (Standard), <=1.8dB (High Signal Isolation)
Backward Pump Isolation >=22dB
Backward Signal Attenuation >=25dB (Standard), >=50dB (High Isolation)
Configuration D Type: 2-port
Y/X Type: 3/4-port (Backward Signal/Pump Guide Out)
Return Loss >=50dB
Extinction Ratio >=18dB
Fiber Type PM850 Fiber or PM780-HP Fiber
Max. Average Power (Pump+Signal) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Max. Backward Signal/Pump Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

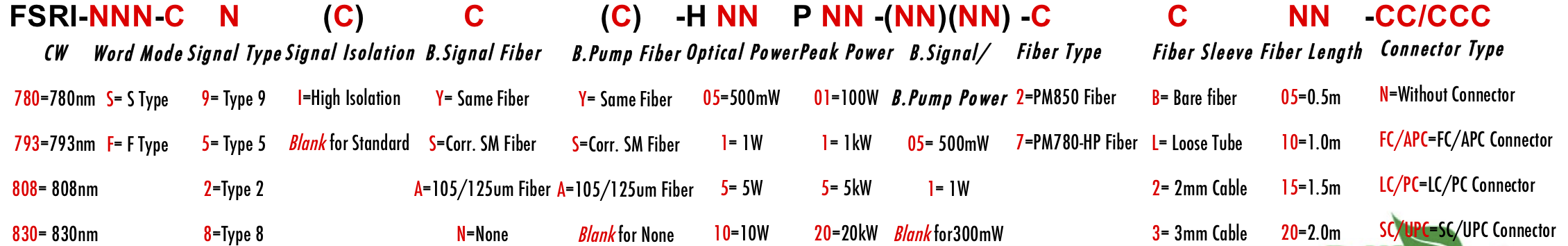

ORDERING INFORMATION/PART NUMBER(PN)
