1950nm Fiber Pigtailed Tap PhotoDiode for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Fiber Pigtailed Tap PhotoDiode is made by micro-optics package technology with fiber in or fiber out. It features Wide Spectrum and High Responsivity. The Fiber Pigtailed Tap PhotoDiode will tap a small portion of input light signals and convert the tapped light signals into electronic signals. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PTPD 1950nm 1920nm 1980nm 1925nm 1930nm 1935nm 1940nm 1945nm 1955nm 1960nm 1965nm 1970nm 1975nm polarization insensitive fiber pigtailed tap photodiode PD for power monitoring with coupler and splitter to tapped light signal fotodiodo de derivación en espiral de fibra insensible a la polarización PD para monitoreo de potencia con acoplador y divisor a señal de luz derivada fotodiodo PD de derivação de fibra insensível à polarização para monitoramento de energia com acoplador e divisor para sinal de luz derivado Niewra?liwa na polaryzacj? fotodioda PD z pigtailami z odczepami do monitorowania mocy ze sprz?gaczem i rozdzielaczem do odczepianego sygna?u ?wietlnego polarisaatiolle herkkä kuitu pigtailed tap -valodiodi PD tehonvalvontaan kytkimellä ja jakajalla napautetulle valosignaalille Photodiode à prise en queue de cochon à fibre insensible à la polarisation PD pour la surveillance de l'alimentation avec coupleur et répartiteur au signal lumineux à prise polarisationsunempfindliche Faser Pigtailed Tap Photodiode PD zur Leistungsüberwachung mit Koppler und Splitter zum abgegriffenen Lichtsignal fotodiodo PD con presa a spirale in fibra insensibile alla polarizzazione per il monitoraggio della potenza con accoppiatore e sdoppiatore per segnale luminoso intercettato SMF-28 SMF28 SM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP PTPD 1950nm 1920nm 1980nm 1925nm 1930nm 1935nm 1940nm 1945nm 1955nm 1960nm 1965nm 1970nm 1975nm polarization insensitive fiber pigtailed tap photodiode PD for power monitoring with coupler and splitter to tapped light signal fotodiodo de derivación en espiral de fibra insensible a la polarización PD para monitoreo de potencia con acoplador y divisor a señal de luz derivada fotodiodo PD de derivação de fibra insensível à polarização para monitoramento de energia com acoplador e divisor para sinal de luz derivado Niewra?liwa na polaryzacj? fotodioda PD z pigtailami z odczepami do monitorowania mocy ze sprz?gaczem i rozdzielaczem do odczepianego sygna?u ?wietlnego polarisaatiolle herkkä kuitu pigtailed tap -valodiodi PD tehonvalvontaan kytkimellä ja jakajalla napautetulle valosignaalille Photodiode à prise en queue de cochon à fibre insensible à la polarisation PD pour la surveillance de l'alimentation avec coupleur et répartiteur au signal lumineux à prise polarisationsunempfindliche Faser Pigtailed Tap Photodiode PD zur Leistungsüberwachung mit Koppler und Splitter zum abgegriffenen Lichtsignal fotodiodo PD con presa a spirale in fibra insensibile alla polarizzazione per il monitoraggio della potenza con accoppiatore e sdoppiatore per segnale luminoso intercettato SMF-28 SMF28 SM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP PTPD 1950nm 1920nm 1980nm 1925nm 1930nm 1935nm 1940nm 1945nm 1955nm 1960nm 1965nm 1970nm 1975nm polarization insensitive fiber pigtailed tap photodiode PD for power monitoring with coupler and splitter to tapped light signal fotodiodo de derivación en espiral de fibra insensible a la polarización PD para monitoreo de potencia con acoplador y divisor a señal de luz derivada fotodiodo PD de derivação de fibra insensível à polarização para monitoramento de energia com acoplador e divisor para sinal de luz derivado Niewra?liwa na polaryzacj? fotodioda PD z pigtailami z odczepami do monitorowania mocy ze sprz?gaczem i rozdzielaczem do odczepianego sygna?u ?wietlnego polarisaatiolle herkkä kuitu pigtailed tap -valodiodi PD tehonvalvontaan kytkimellä ja jakajalla napautetulle valosignaalille Photodiode à prise en queue de cochon à fibre insensible à la polarisation PD pour la surveillance de l'alimentation avec coupleur et répartiteur au signal lumineux à prise polarisationsunempfindliche Faser Pigtailed Tap Photodiode PD zur Leistungsüberwachung mit Koppler und Splitter zum abgegriffenen Lichtsignal fotodiodo PD con presa a spirale in fibra insensibile alla polarizzazione per il monitoraggio della potenza con accoppiatore e sdoppiatore per segnale luminoso intercettato SMF-28 SMF28 SM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 001U 01U 02U 03U 04U 05U 06U 07U 08U 09U 10U 11U 12U 13U 14U 15U 16U 17U 18U 19U 20U 21U 22U 23U 24U 25U 26U 27U 28U 29U 30U 31U 32U 33U 34U 35U 36U 37U 38U 39U 40U 41U 42U 43U 44U 45U 46U 47U 48U 49U 50U 51U 52U 53U 54U 55U 56U 57U 58U 59U 60U 61U 62U 63U 64U 65U 66U 67U 68U 69U 70U 71U 72U 73U 74U 75U 76U 77U 78U 79U 80U 81U 82U 83U 84U 85U 86U 87U 88U 89U 90U 91U 92U 93U 94U 95U 96U 97U 98U 99U
TYPICAL SPECIFICATIONS
Center Wavelength 1950nm
Bandwidth +/-20nm
Tap Ratio 0.01%, 0.1%, 1%, 2%, 5%, 10%, 20%, 30%, 40% 50%
Excess Loss <=1.0dB
Responsivity@tapped power >=800mA/W
Return Loss >=40dB
Dark Current (1V Bias) <=75uA
Work Mode Standard: Backward Light may leak to PD
U Type: Isolate Backward Light to PD
Fiber Type SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Max. Average Power on PD 10mW
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

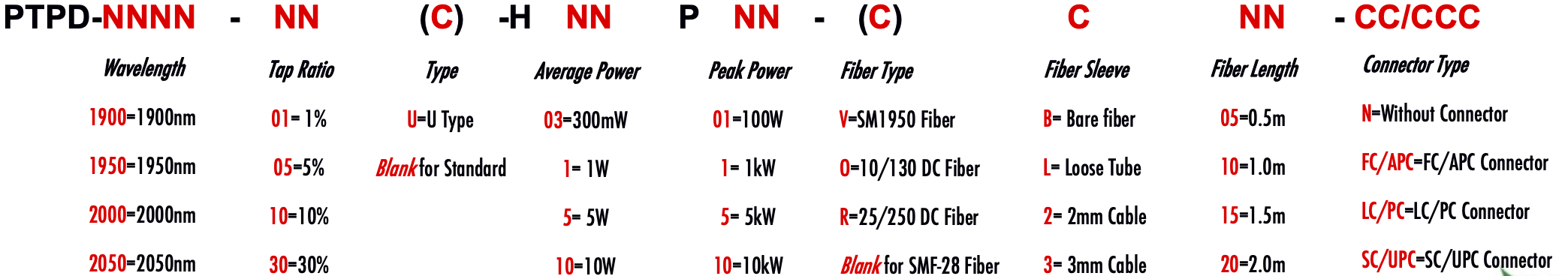

ORDERING INFORMATION/PART NUMBER(PN)
