1310nm Fixed Attenuator

DESCRIPTION
Haphit provides fiber based passive components. The Fixed Attenuator is made by micro-optics package technology with fiber in and fiber out. It features various and precise attenuation value. The Fixed Attenuator will attenuate the input signal at a certain ratio. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PFAT 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm polarization insensitive optical fiber Fixed Attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x1 SMF-28 SMF28 LMA 8/125um SC Single Clad Cladding PFAT 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm polarization insensitive optical fiber Fixed Attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x1 SMF-28 SMF28 LMA 8/125um SC Single Clad Cladding PFAT 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm polarization insensitive optical fiber Fixed Attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x1 SMF-28 SMF28 LMA 8/125um SC Single Clad Cladding A01 A02 A03 A04 A05 A06 A07 A08 A09 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 P01 P02 P03 P04 P05 P06 P07 P08 P09 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29 P30
TYPICAL SPECIFICATIONS
Center Wavelength 1310nm
Bandwidth +/-30nm
Attenuation Range 0-30dB
Standard Attenuation Value 1dB, 3dB, 5dB, 10dB, 15dB, 20dB
Attenuation Tolerance +/-0.5dB (<5dB)
+/-10%(>=5dB)
Return Loss >=40dB (PC Polish)
>=50dB (UPC Polish)
>=60dB (APC Polish)
PDL <=0.2dB
Fiber Type SMF-28 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature -40~85degreeC

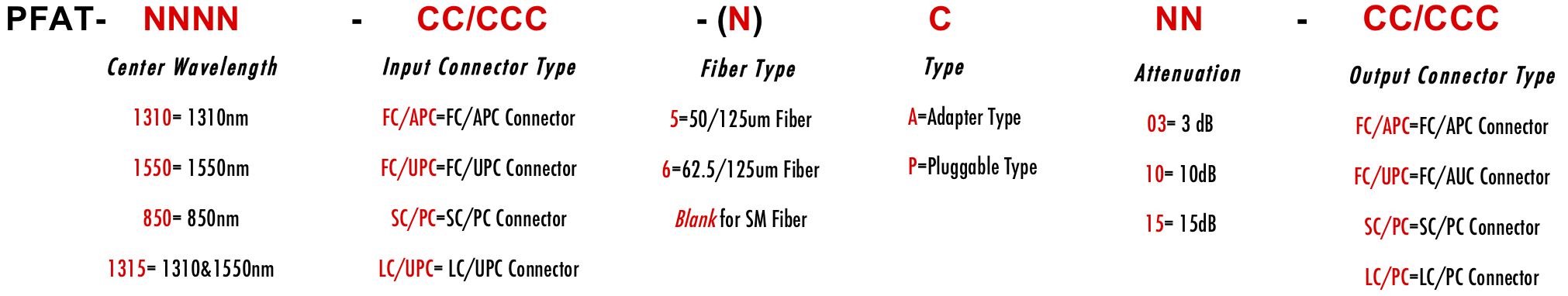

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
