	1092nm High Power Inline Fixed Attenuator

DESCRIPTION

Haphit provides fiber based passive components. The Inline Fixed Attenuator is made by micro-optics package technology with fiber in and fiber out. It features various and precise attenuation value. The Inline Fixed Attenuator will attenuate the input signal at a certain ratio. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.

PIAT 1092nm 1070nm 1112nm 1075nm 1080nm 1083nm 1085nm 1090nm 1095nm 1100nm 1105nm 1103nm 1102nm 1110nm polarization insensitive optical fiber inline fixed attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x2 2x2 HI1060 1060XP LMA 6/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave PIAT 1092nm 1070nm 1112nm 1075nm 1080nm 1083nm 1085nm 1090nm 1095nm 1100nm 1105nm 1103nm 1102nm 1110nm polarization insensitive optical fiber inline fixed attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x2 2x2 HI1060 1060XP LMA 6/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave PIAT 1092nm 1070nm 1112nm 1075nm 1080nm 1083nm 1085nm 1090nm 1095nm 1100nm 1105nm 1103nm 1102nm 1110nm polarization insensitive optical fiber inline fixed attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x2 2x2 HI1060 1060XP LMA 6/125um 10/125um 10/130um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave 01Y 02Y 03Y 04Y 05Y 06Y 07Y 08Y 09Y 10Y 11Y 12Y 13Y 14Y 15Y 16Y 17Y 18Y 19Y 20Y 21Y 22Y 23Y 24Y 25Y 26Y 27Y 28Y 29Y 30Y

TYPICAL SPECIFICATIONS

Center Wavelength	1092nm
Bandwidth	+/-10nm
Attenuation Range	0-30dB
Standard Attenuation Value	3dB, 5dB, 10dB, 15dB, 20dB
Attenuation Tolerance	+/-0.5dB (<5dB) +/-10%(>=5dB)
Return Loss	>=45dB
Configuration	D Type: 2-port Y Type: 3-port, attenuated power guide out
Fiber Type	HI1060 Fiber or HI1060 Flex Fiber 10/125um SC Fiber or 10/125um DC Fiber
Max. Thru Optical Power (CW)	1W, 2W, 3W, 5W, 10W
Max. Attenuated Optical Power (CW)	2W
Operating Temperature	0~50degreeC

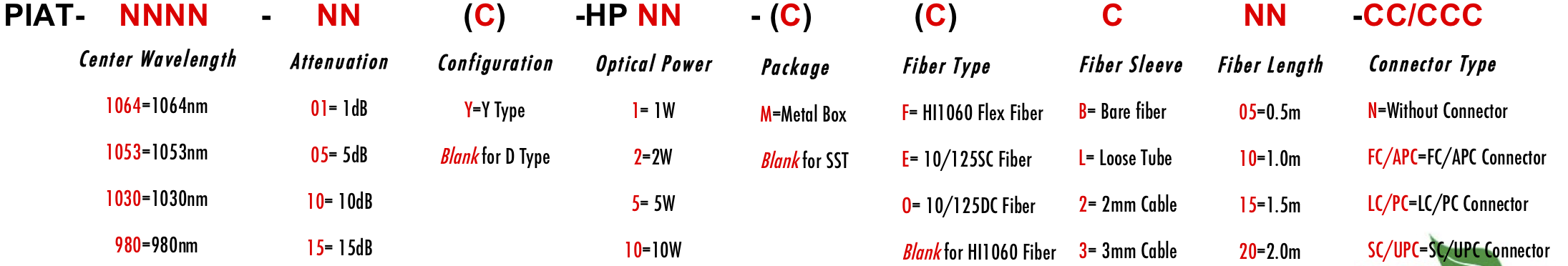

ORDERING INFORMATION/PART NUMBER(PN)
