1590nm 1X(4-128) Opto-Mechanical Switch

DESCRIPTION
Haphit provides fiber based passive components. The 1X(4-128) Opto-Mechanical Switch is made by micro-optics package technology with fiber in or fiber out. It features Wide & Flat Spectrum and Various Configuration. The 1X(4-128) Opto-Mechanical Switch will switch the input light signal between 4~128 different outputs. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FOMS 1590nm 1550nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm polarization insensitive optical mechanical 1X4 1X8 1X16 1X32 1X64 1X128 switch with fiber in and out Commutateur 1X4 1X8 1X16 1X32 1X64 1X128 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 1X4 1X8 1X16 1X32 1X64 1X128-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 1X4 1X8 1X16 1X32 1X64 1X128 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 1X4 1X8 1X16 1X32 1X64 1X128-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 1X4 1X8 1X16 1X32 1X64 1X128 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 1X4 1X8 1X16 1X32 1X64 1X128 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 1X4 1X8 1X16 1X32 1X64 1X128 óptico-mecânico insensível à polarização com entrada e saída de fibra SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type FOMS 1590nm 1550nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm polarization insensitive optical mechanical 1X4 1X8 1X16 1X32 1X64 1X128 switch with fiber in and out Commutateur 1X4 1X8 1X16 1X32 1X64 1X128 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 1X4 1X8 1X16 1X32 1X64 1X128-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 1X4 1X8 1X16 1X32 1X64 1X128 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 1X4 1X8 1X16 1X32 1X64 1X128-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 1X4 1X8 1X16 1X32 1X64 1X128 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 1X4 1X8 1X16 1X32 1X64 1X128 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 1X4 1X8 1X16 1X32 1X64 1X128 óptico-mecânico insensível à polarização com entrada e saída de fibra SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type FOMS 1590nm 1550nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm polarization insensitive optical mechanical 1X4 1X8 1X16 1X32 1X64 1X128 switch with fiber in and out Commutateur 1X4 1X8 1X16 1X32 1X64 1X128 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 1X4 1X8 1X16 1X32 1X64 1X128-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 1X4 1X8 1X16 1X32 1X64 1X128 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 1X4 1X8 1X16 1X32 1X64 1X128-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 1X4 1X8 1X16 1X32 1X64 1X128 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 1X4 1X8 1X16 1X32 1X64 1X128 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 1X4 1X8 1X16 1X32 1X64 1X128 óptico-mecânico insensível à polarização com entrada e saída de fibra SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type M004 M006 M008 M04 M4 M06 M6 M08 M8 M16 M016 M32 M032 M064 M64 M128 M088 M88 M100 M005 M5 M05
TYPICAL SPECIFICATIONS
Center Wavelength 1590nm
Bandwidth +/-30nm
Insertion Loss <=1.0dB (1X4~16)
<=1.2dB(1X17~64)
<=1.5dB(1X65~128)
Wavelength Dependent Loss <=0.25dB
Return Loss >=50dB
PDL <=0.1dB
Cross Talk >=55dB
Switch Speed <=10ms
(Sequence switch time of adjacent channel)
Operating Voltage 5V
Fiber Type SMF-28 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~70degreeC

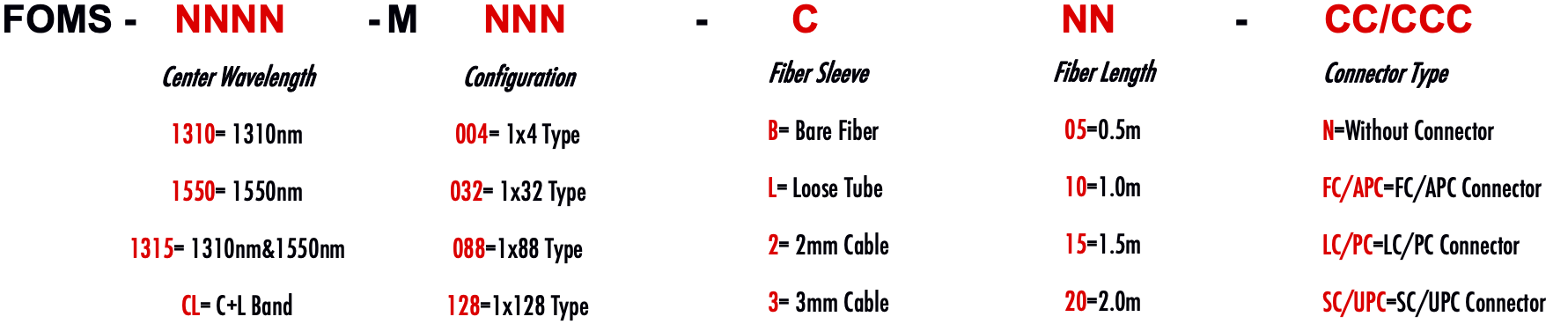

ORDERING INFORMATION/PART NUMBER(PN)
