1950nm 3-port Optical Circulator for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Circulator will transmit the signal in a circular route. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FCIR 1950nm 1930nm 1940nm 1960nm 1970nm 1955nm 1935nm 1945nm 1965nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCIR 1950nm 1930nm 1940nm 1960nm 1970nm 1955nm 1935nm 1945nm 1965nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FCIR 1950nm 1930nm 1940nm 1960nm 1970nm 1955nm 1935nm 1945nm 1965nm Optical Circulator Polarization Insensitive Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP
TYPICAL SPECIFICATIONS
Center Wavelength 1950nm
Insertion Loss <=1.9dB
Isolation >=14dB
Cross Talk >=40dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

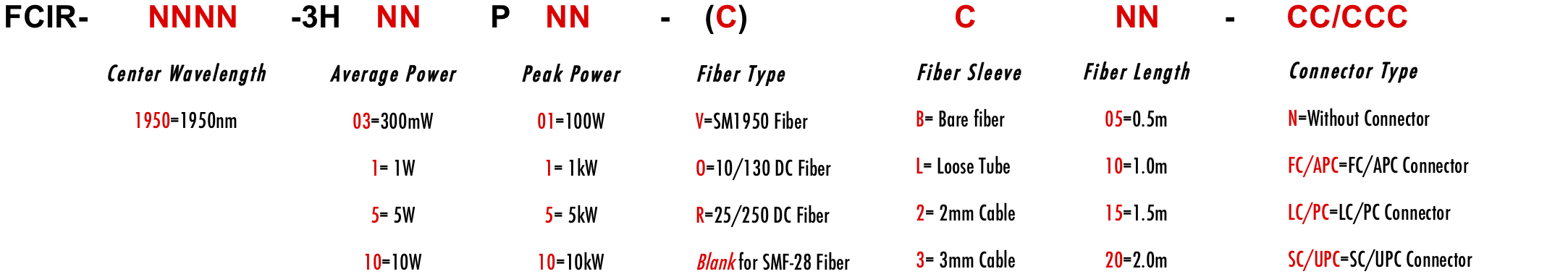

ORDERING INFORMATION/PART NUMBER(PN)
